Design and Clearance Specifications

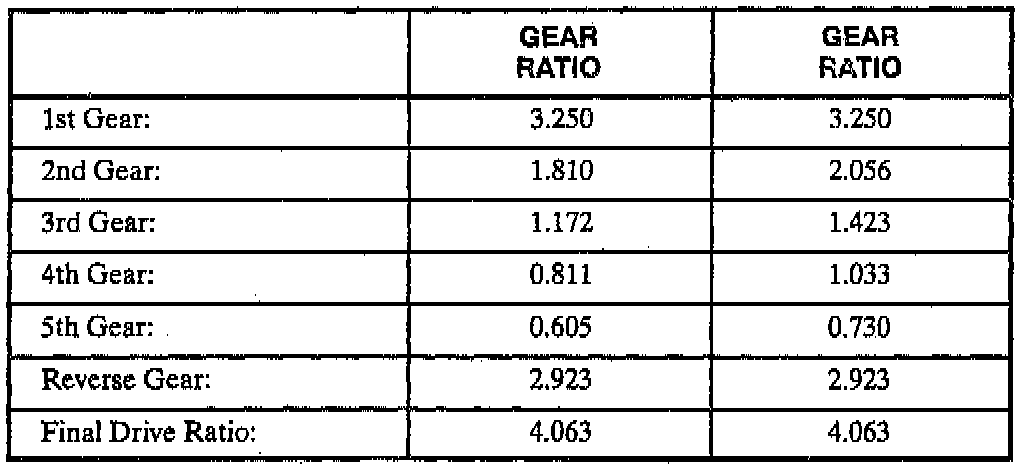

Gear Ratio:

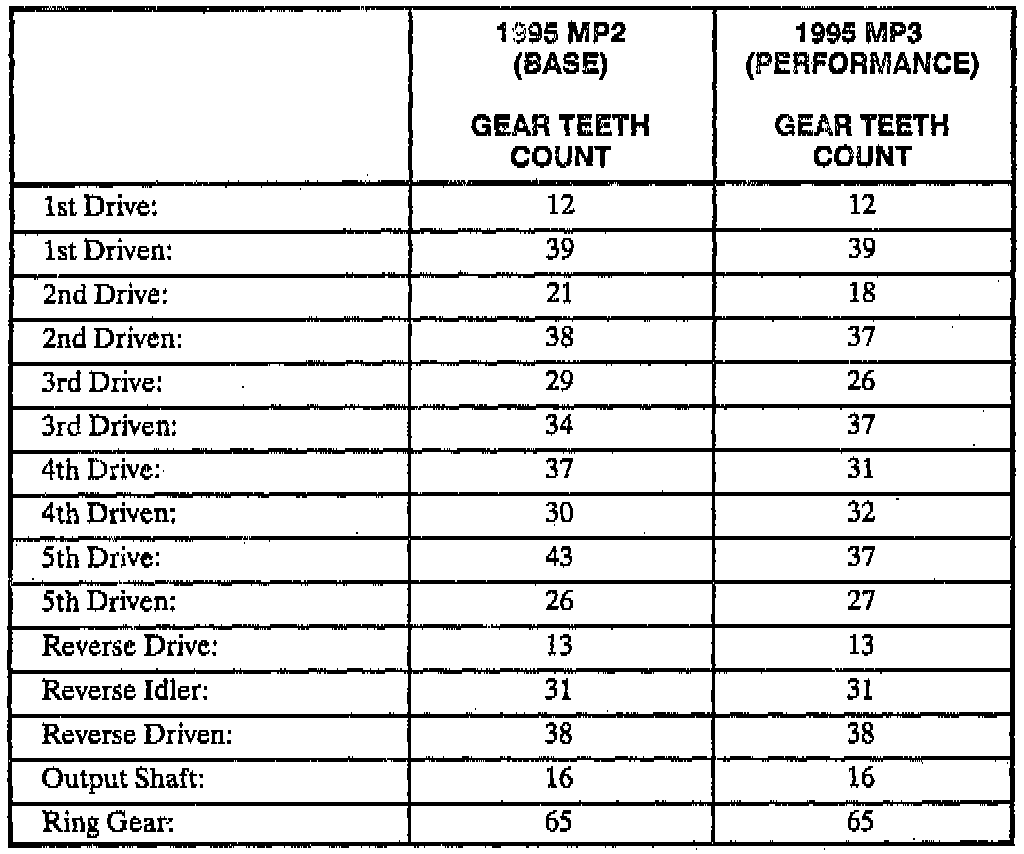

GEAR IDENTIFICATION
All MP3 unique gears have an identification groove on the outer diameter of the gear teeth. There is no identification mark on MP2 unique gears, or MP2 and MP3 common gears.

Gear ratio

Specifications:
