Torque Specifications

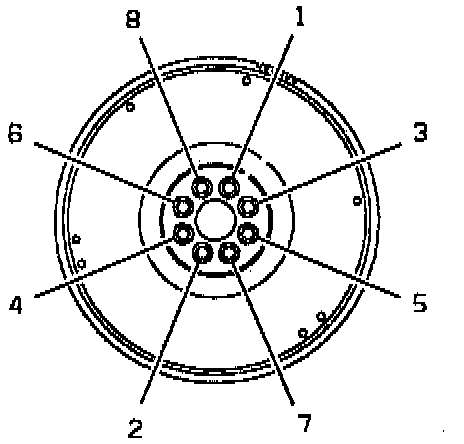

Flywheel-to-crankshaft bolts Torque: 80 N.m (59 lb ft).

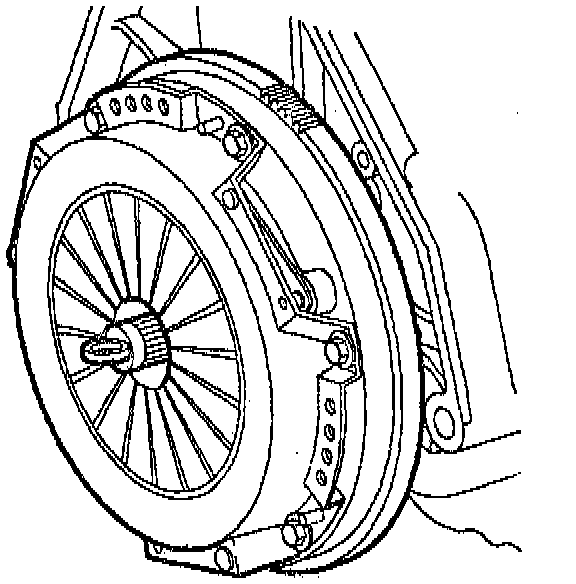

Pressure Plate bolts tighten using a progressive crisscross pattern to prevent warping of the cover stamping.
- Torque: 25 N.m (18 lb ft).
Flywheel-to-crankshaft bolts Torque: 80 N.m (59 lb ft).
Pressure Plate bolts tighten using a progressive crisscross pattern to prevent warping of the cover stamping.
- Torque: 25 N.m (18 lb ft).
