Home >> Saturn >> 1997 >> SL L4-1.9L SOHC VIN 8 >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Trunk / Liftgate Switch >> Diagrams

Trunk / Liftgate Switch: Diagrams

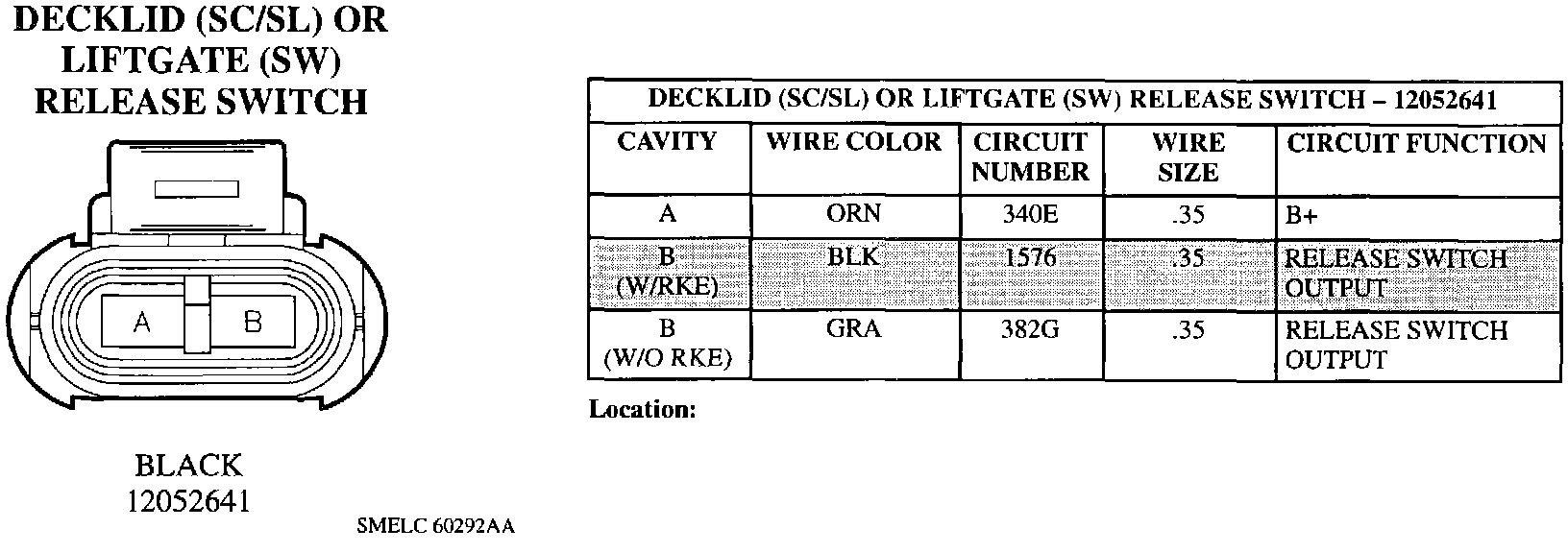

Decklid (SC/SL) Or Liftgate (SW) Release Switch:
