Installation

Inflator Module - Passenger Side:

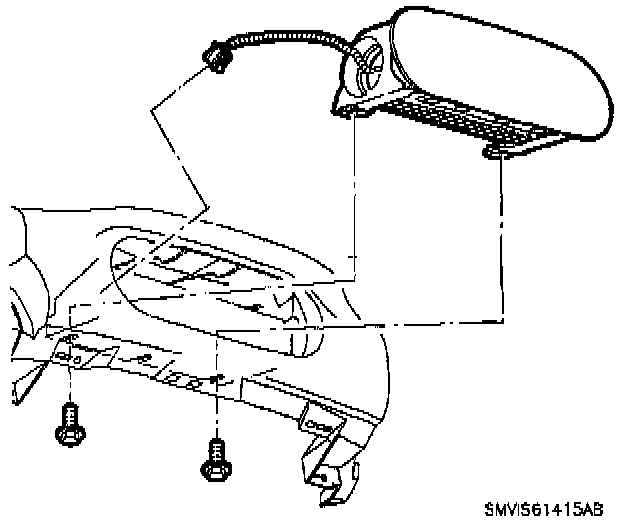

1. Install passenger inflator module (air bag).

Torque: 10 N.m (89 in.lbs.)

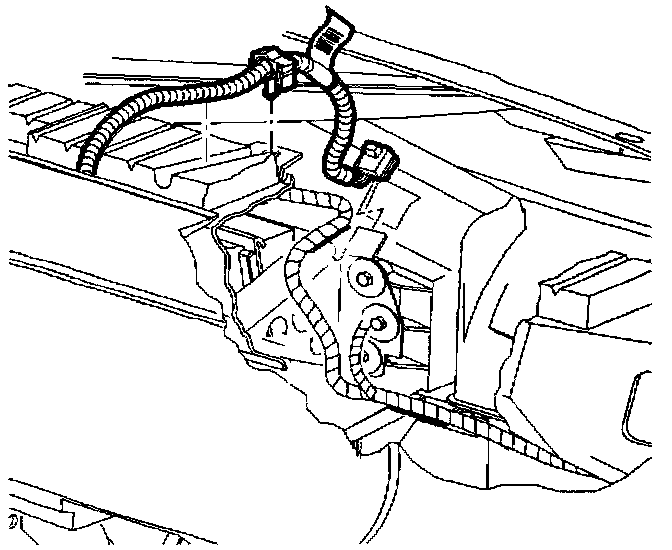

2. Engage all inflator module wiring harness connector clips to cross car beam and energy absorber.

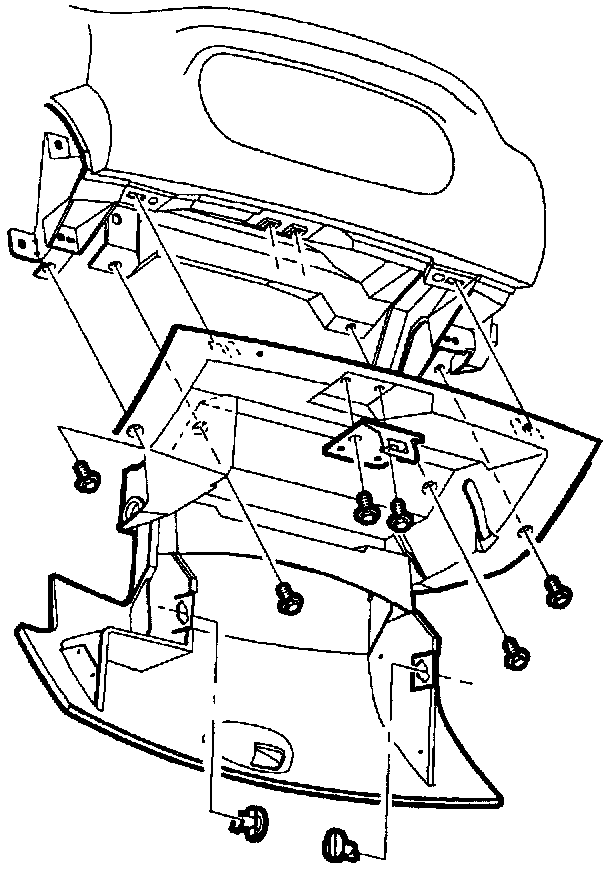

3. Install glove box assembly and striker.
4. Install glove box door stops.
5. Enable the SIR system. (Refer to "Air Bag(s) Arming and Disarming.")
