Transmission Mode Switch: Service and Repair






REMOVAL
1. Disable the SIR System.
2. Remove console.
3. Remove CPA retainer, if present.

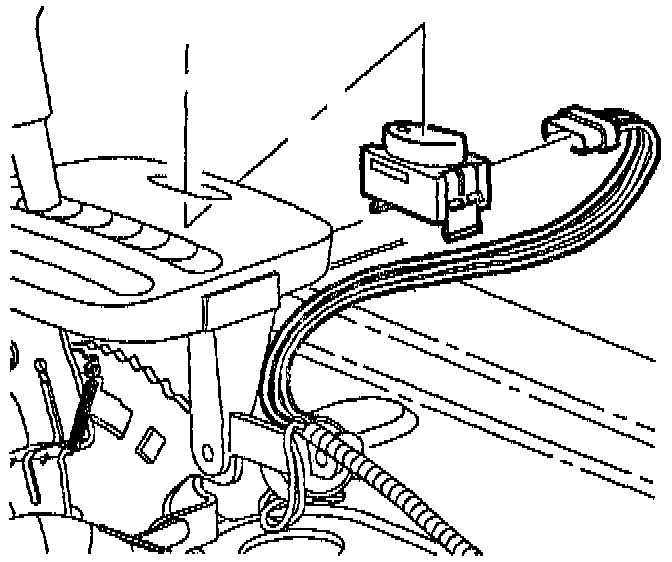

4. Release retaining tabs from the bottom side, remove switch, and disconnect connector.

INSTALLATION
1. Connect transaxle shift program switch connector.
2. Install CPA retainer if removed.
3. Snap switch into place. (Make sure both tabs are fully seated.)
4. Install console.
5. Enable the SIR System.
