Home >> Saturn >> 1997 >> SL L4-1.9L SOHC VIN 8 >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Brake Transaxle Shift Interlock (BTSI)

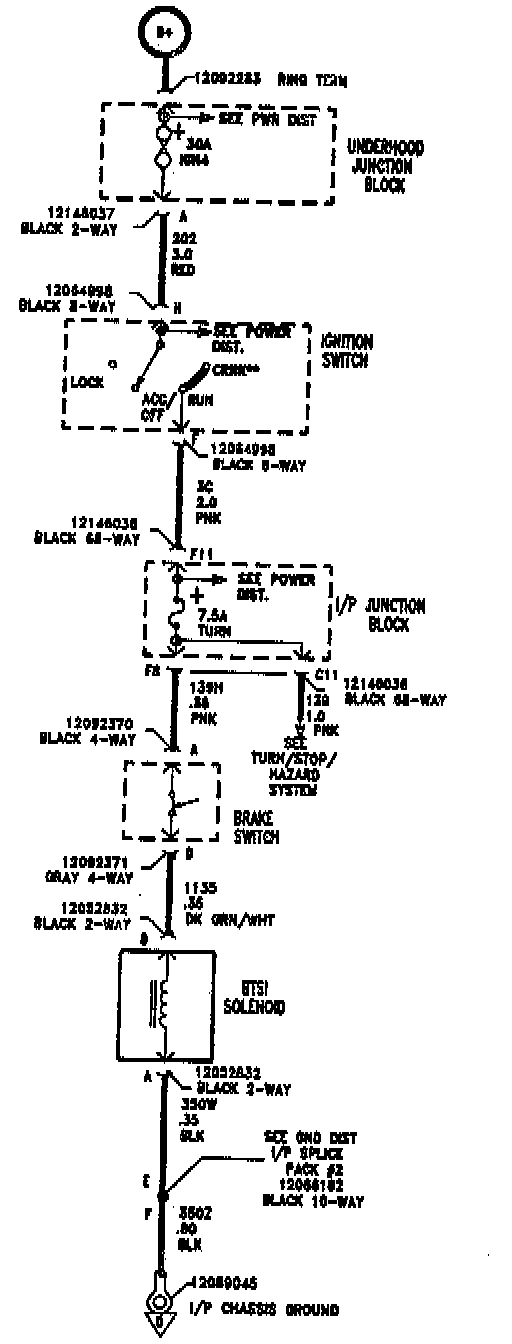

Brake Transaxle Shift Interlock (BTSI)
