Throttle Position (TP) Sensor Installation






INSTALLATION

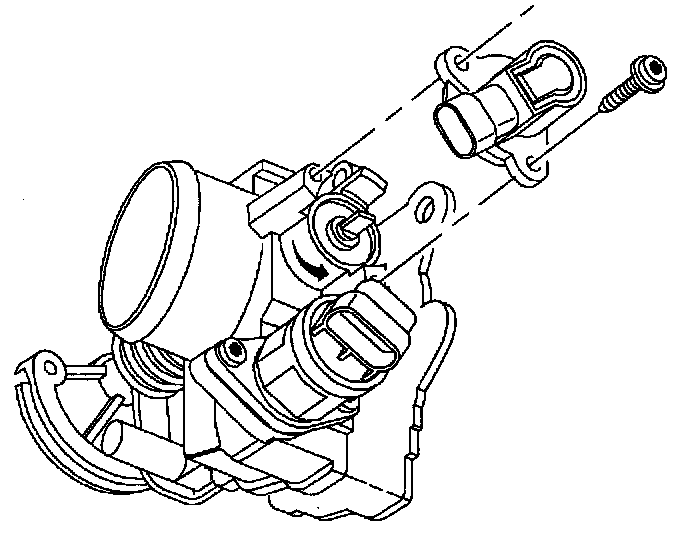

1. With throttle body valve closed, install throttle position (TP) sensor on throttle body shaft. Rotate throttle position (TP) sensor counterclockwise to align mounting holes.
2. Install throttle position (TP) sensor attachment screws. Torque to 2 N.m (18 in-lbs)
