Canister Purge Solenoid: Service and Repair

Assembly:

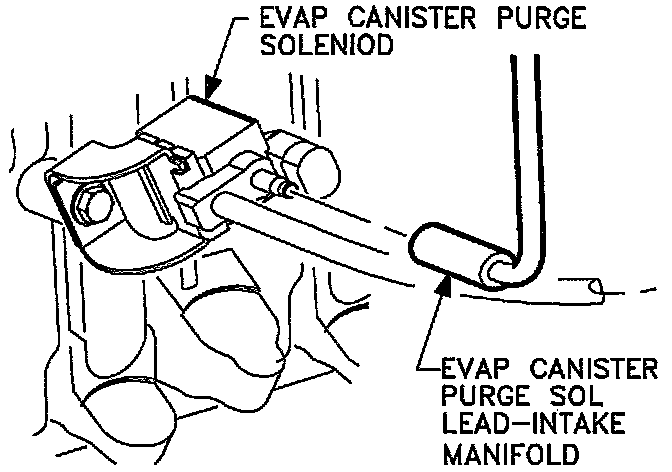

EVAP CANISTER PURGE SOLENOID REMOVAL

1. Disconnect negative battery cable.
2. Remove air intake tube and resonator.
3. Disconnect EVAP canister purge solenoid electrical connector and vacuum hose.
4. Remove attachment bolt and EVAP canister purge solenoid.
5. Remove air cleaner housing and clean air inlet tube/resonator assembly.


INSTALLATION

1. Install attachment bolt and EVAP canister purge solenoid.
- Torque: 25 N.m (19 ft-lbs)

NOTE: Make sure that hoses are firmly seated. Check for vacuum leaks after assembly.

2. Connect electrical connector to EVAP canister purge solenoid. Push in connector until a click is heard and pull back to confirm a positive engagement.
3. Install intake tube and resonator.
4. Connect negative battery cable.
