PCM Diagrams

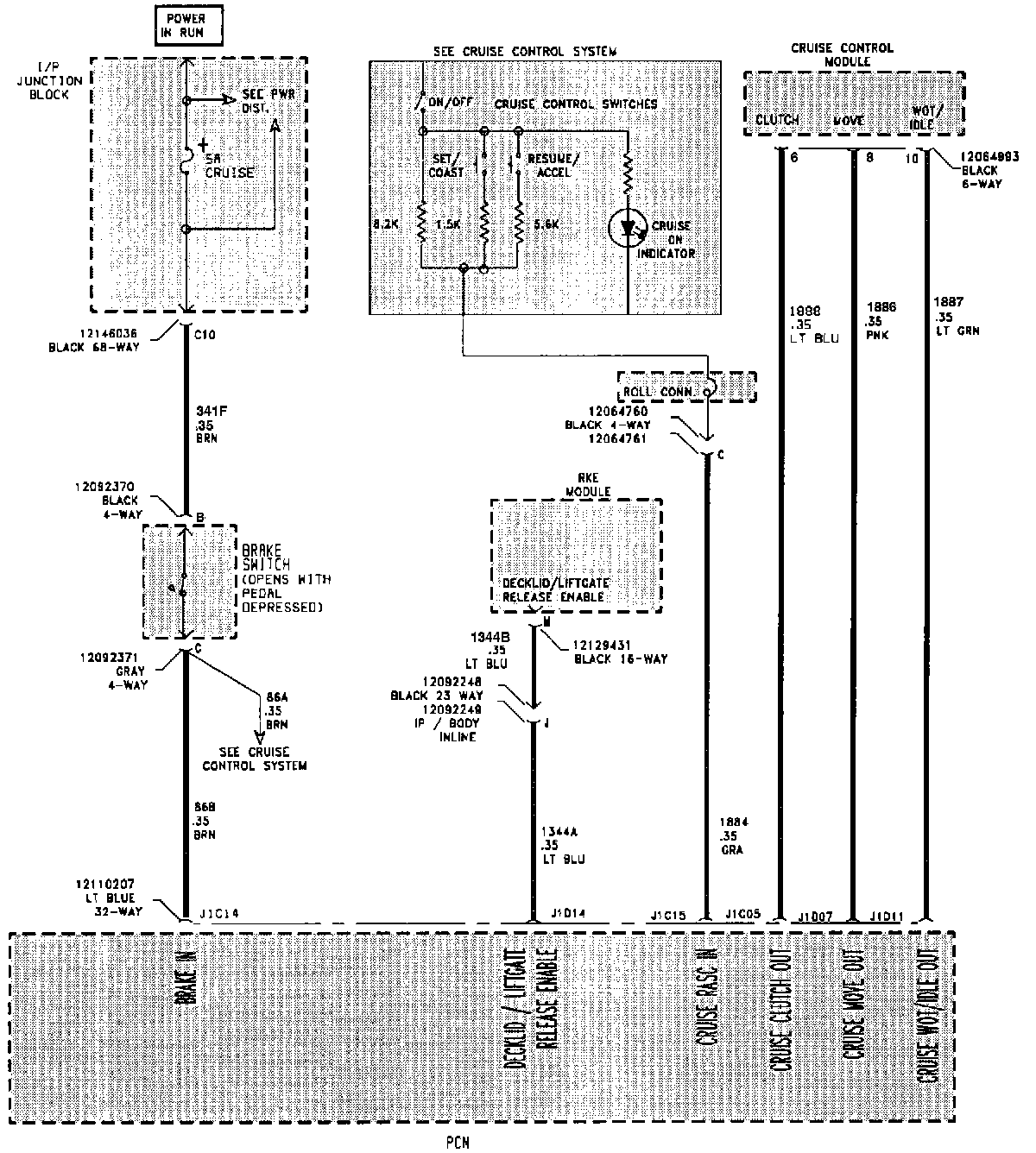

Fuel Injection:

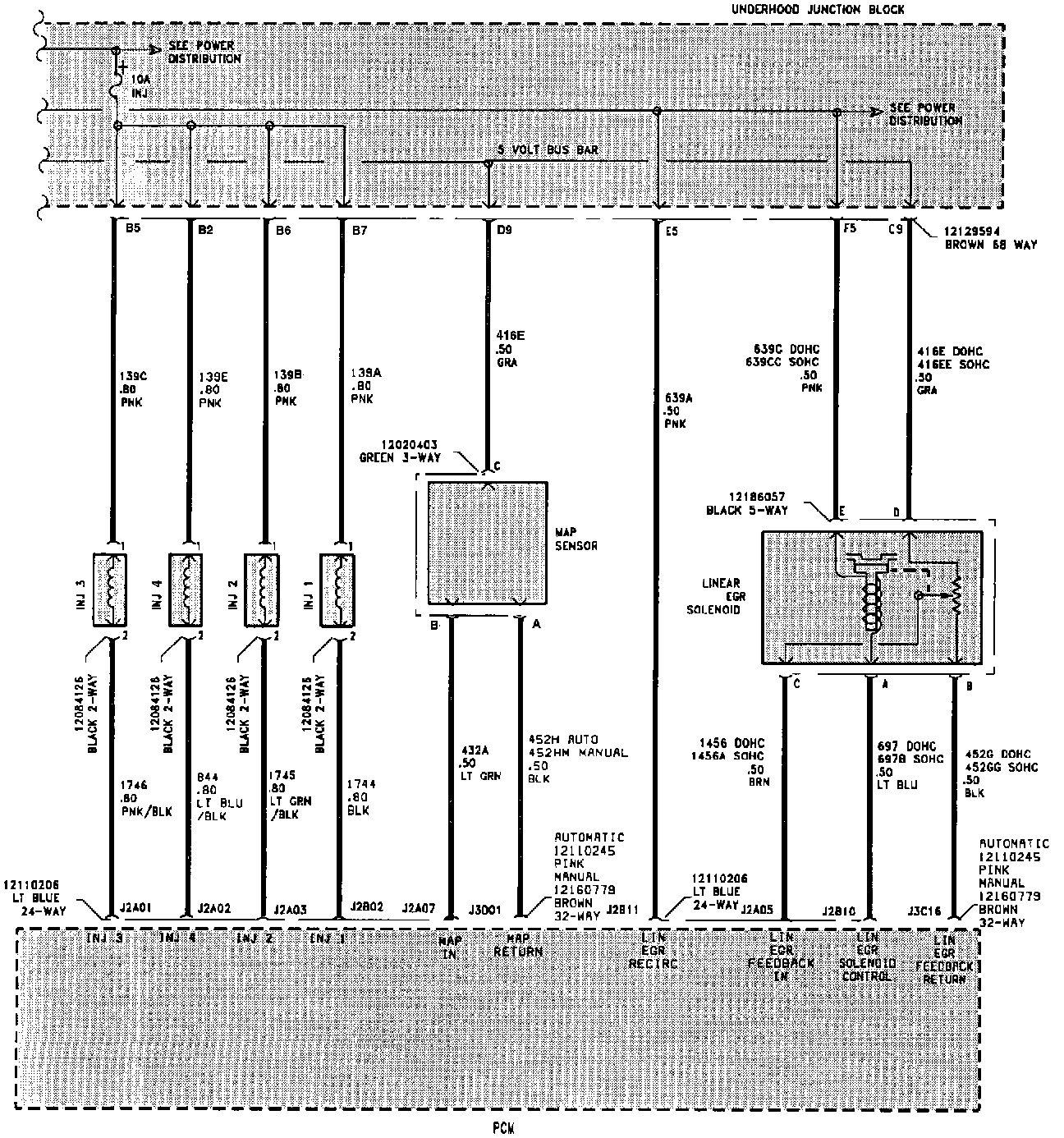

Fuel Injection:





Fuel Injection: PCM:

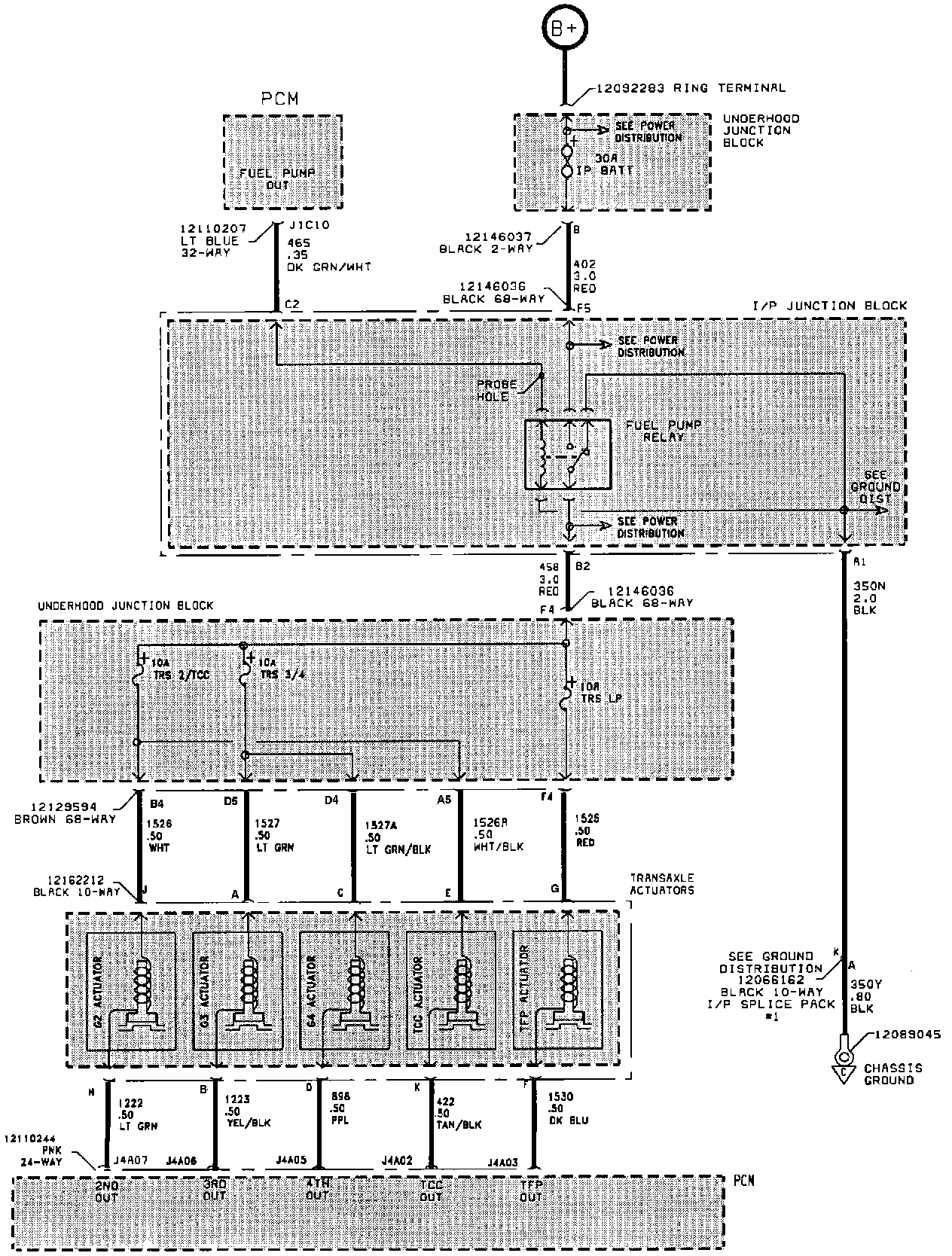

Fuel Injection:

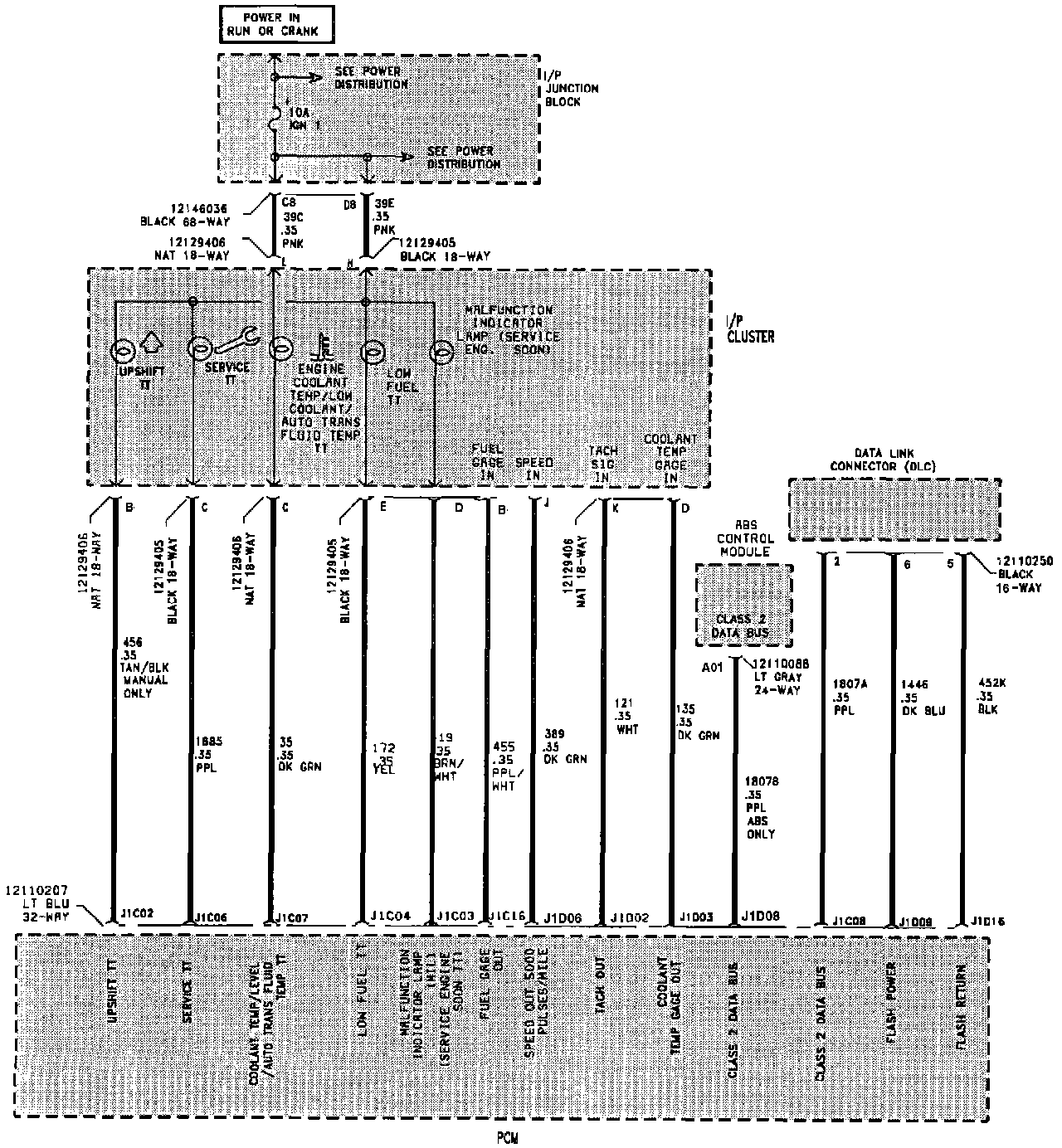

Fuel Injection:

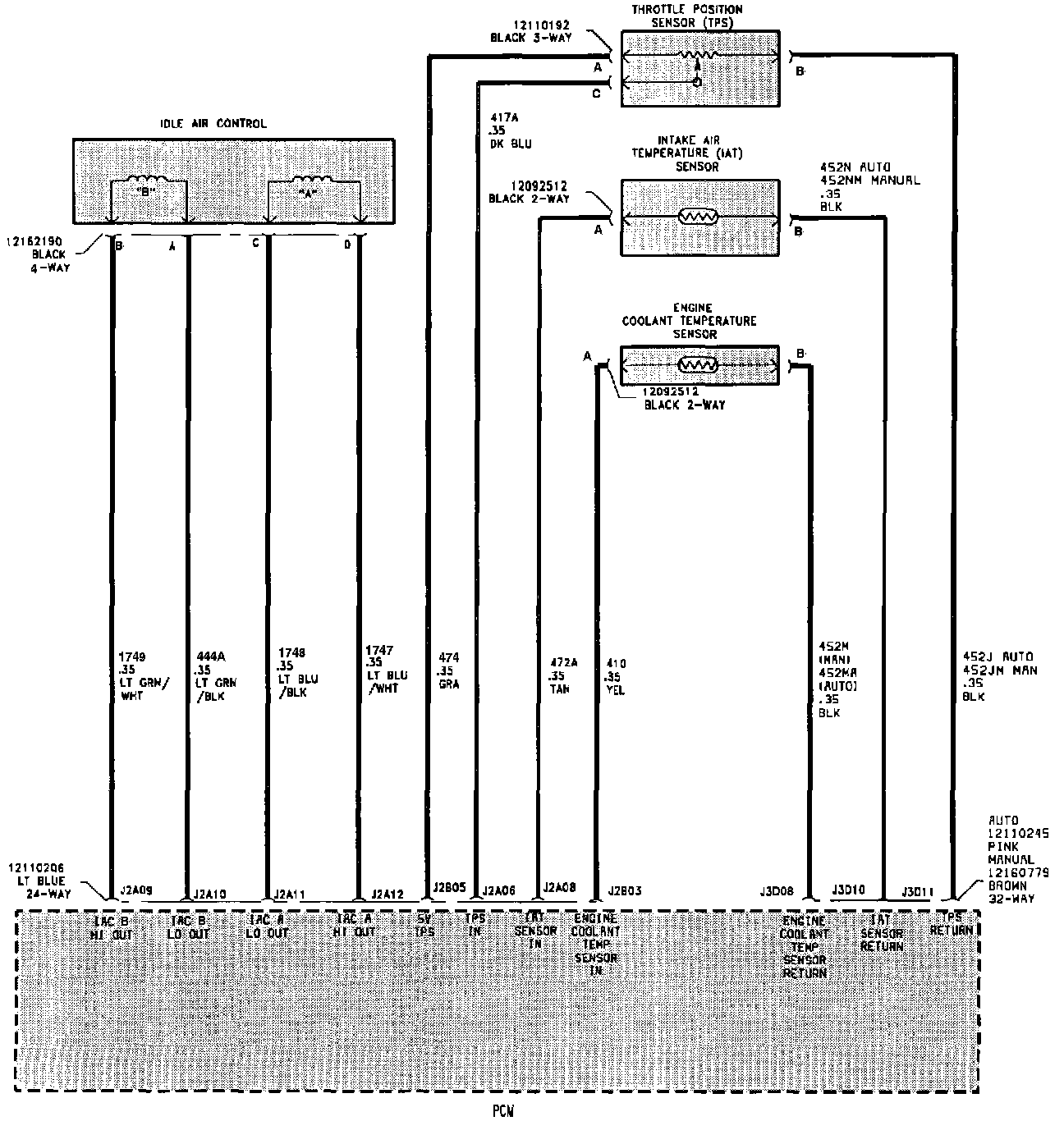

Fuel Injection:

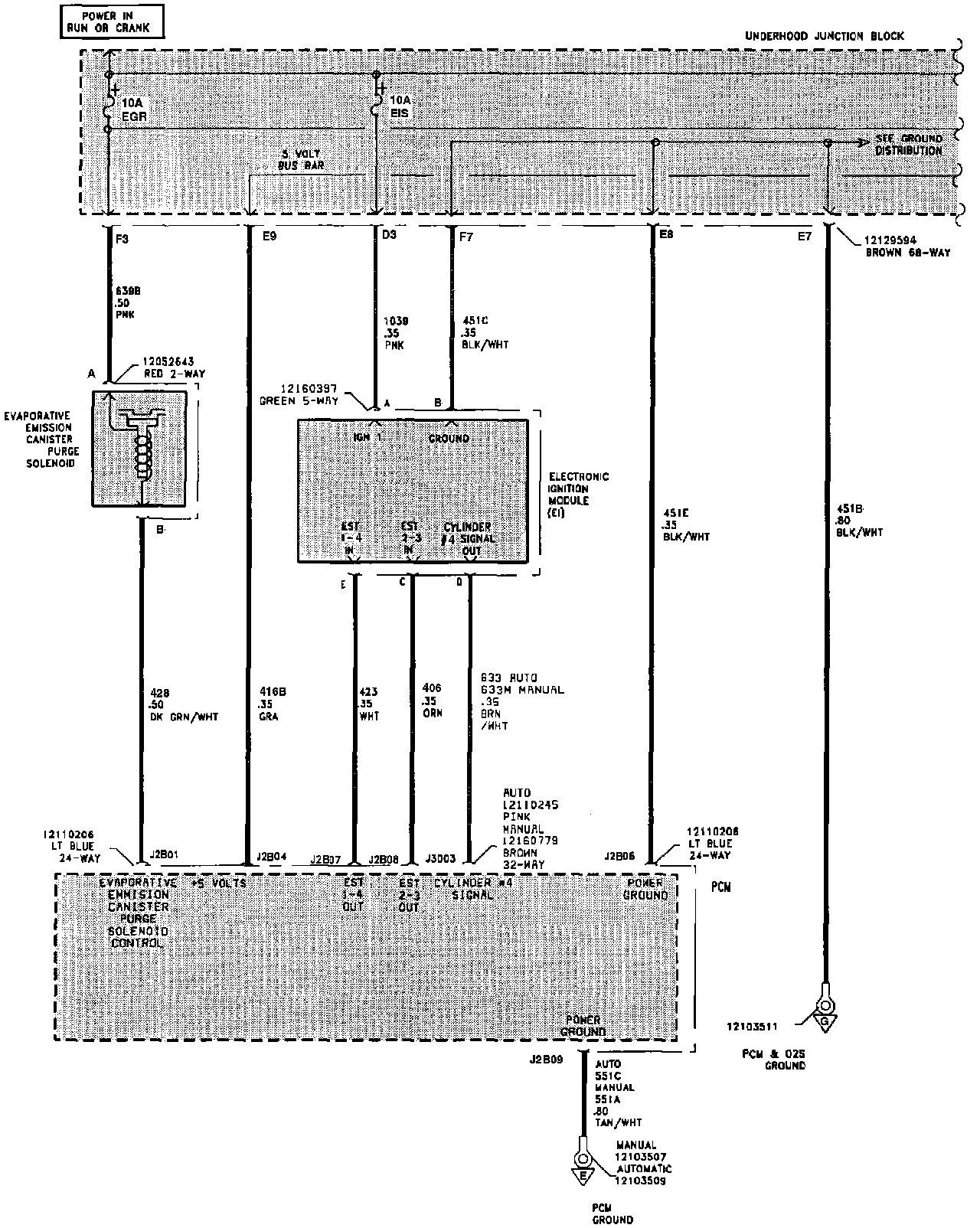

Fuel Injection:

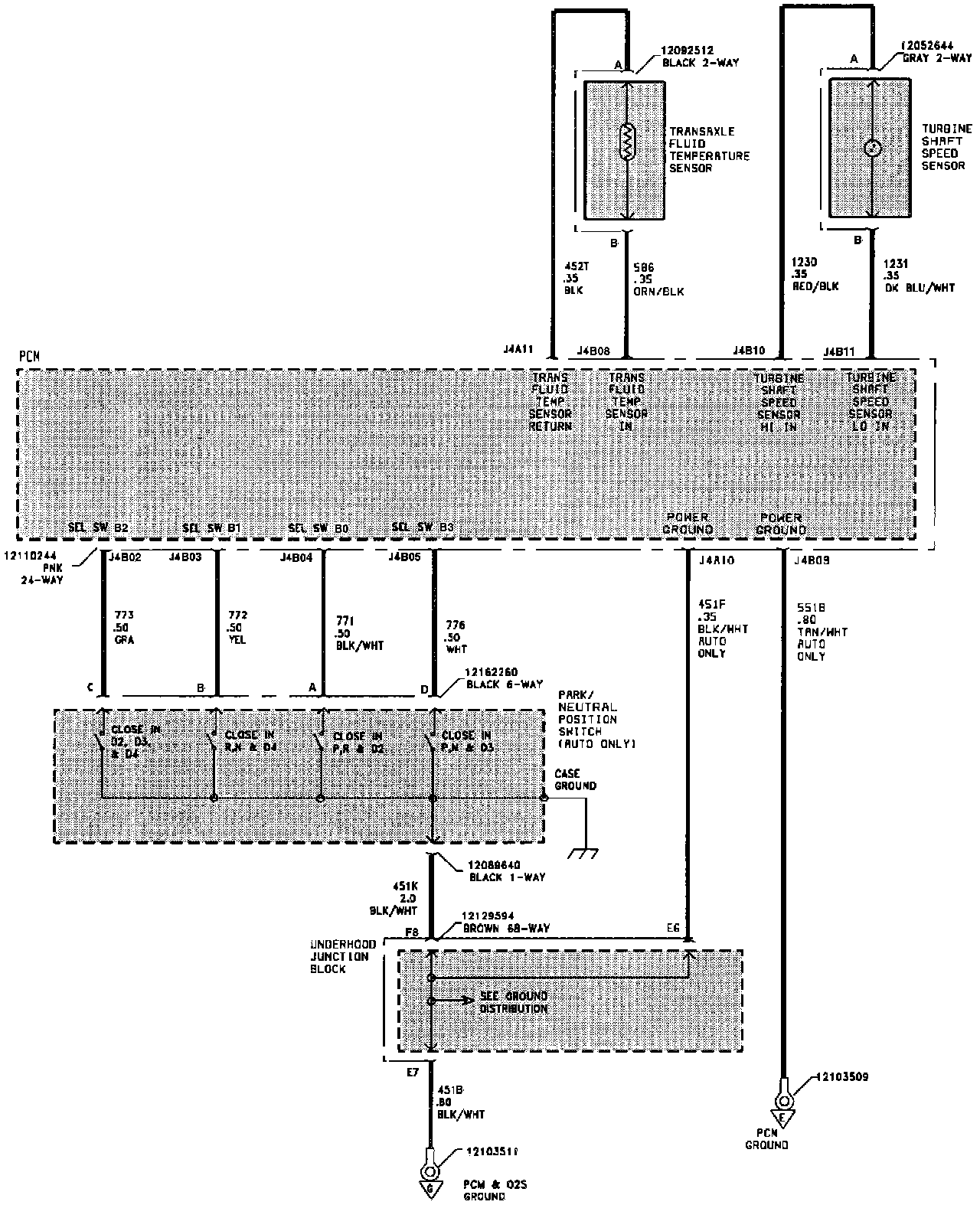

Fuel Injection: Automatic Transaxle Controls:

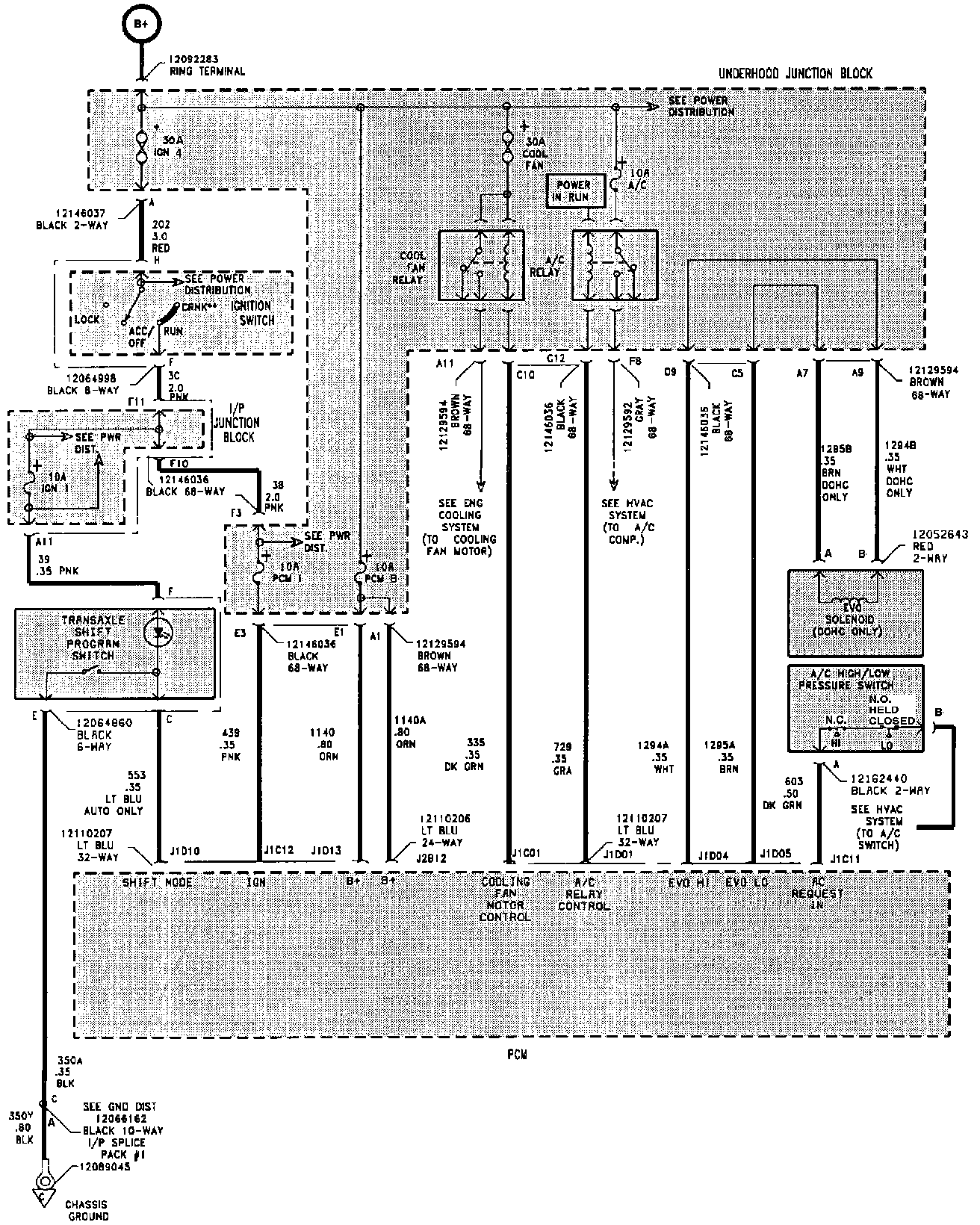

Fuel Injection:
