Home >> Saturn >> 1997 >> SL L4-1.9L SOHC VIN 8 >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Application and ID >> Instrument Panel Junction Block (IPJB) >> Minifuses Circuit Feeds

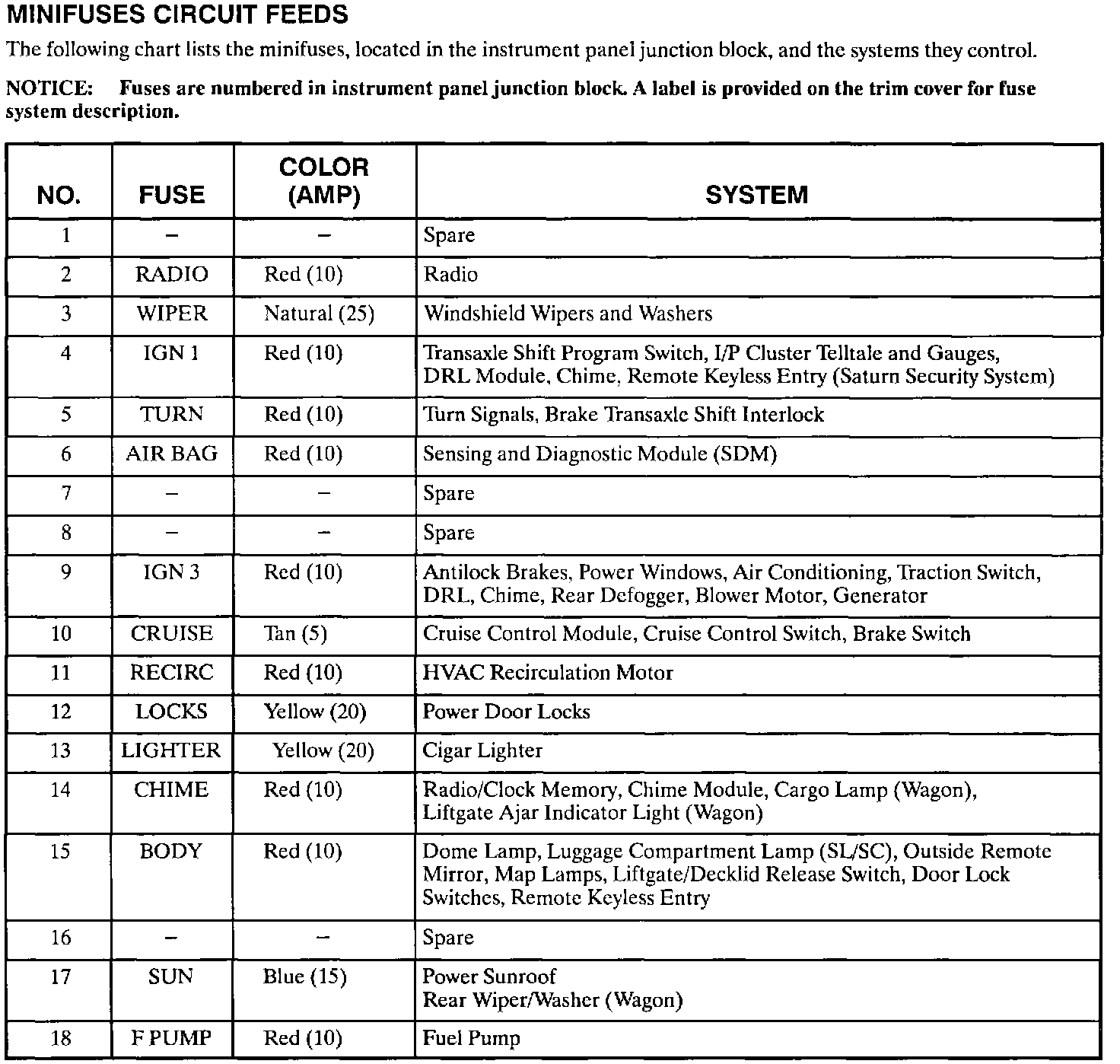

Minifuses Circuit Feeds

Minifuses Circuit Feeds:
