Home >> Saturn >> 1997 >> SL L4-1.9L SOHC VIN 8 >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> ABS/SIR Splice Pack Ground

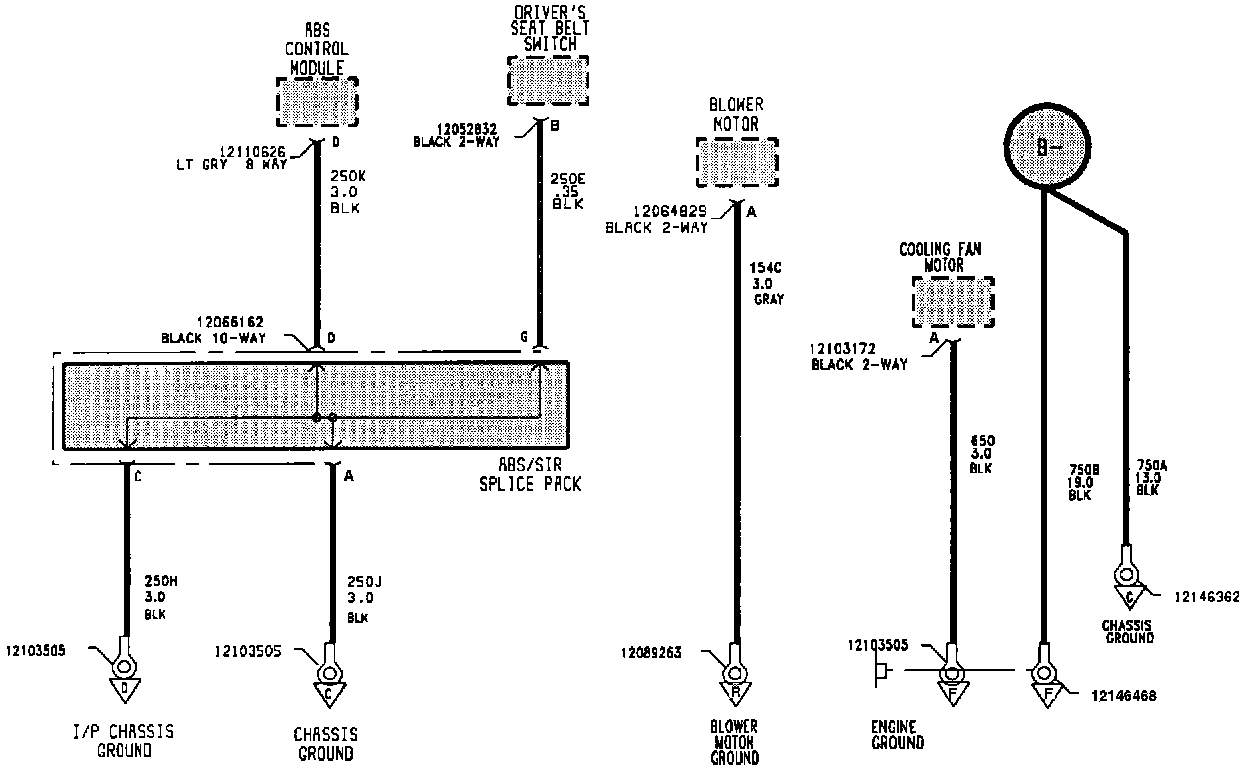

ABS/SIR Splice Pack Ground

ABS/SIR Splice Pack, Blower Motor, Cooling Fan Motor, And Battery Grounds:
