Pinout Description

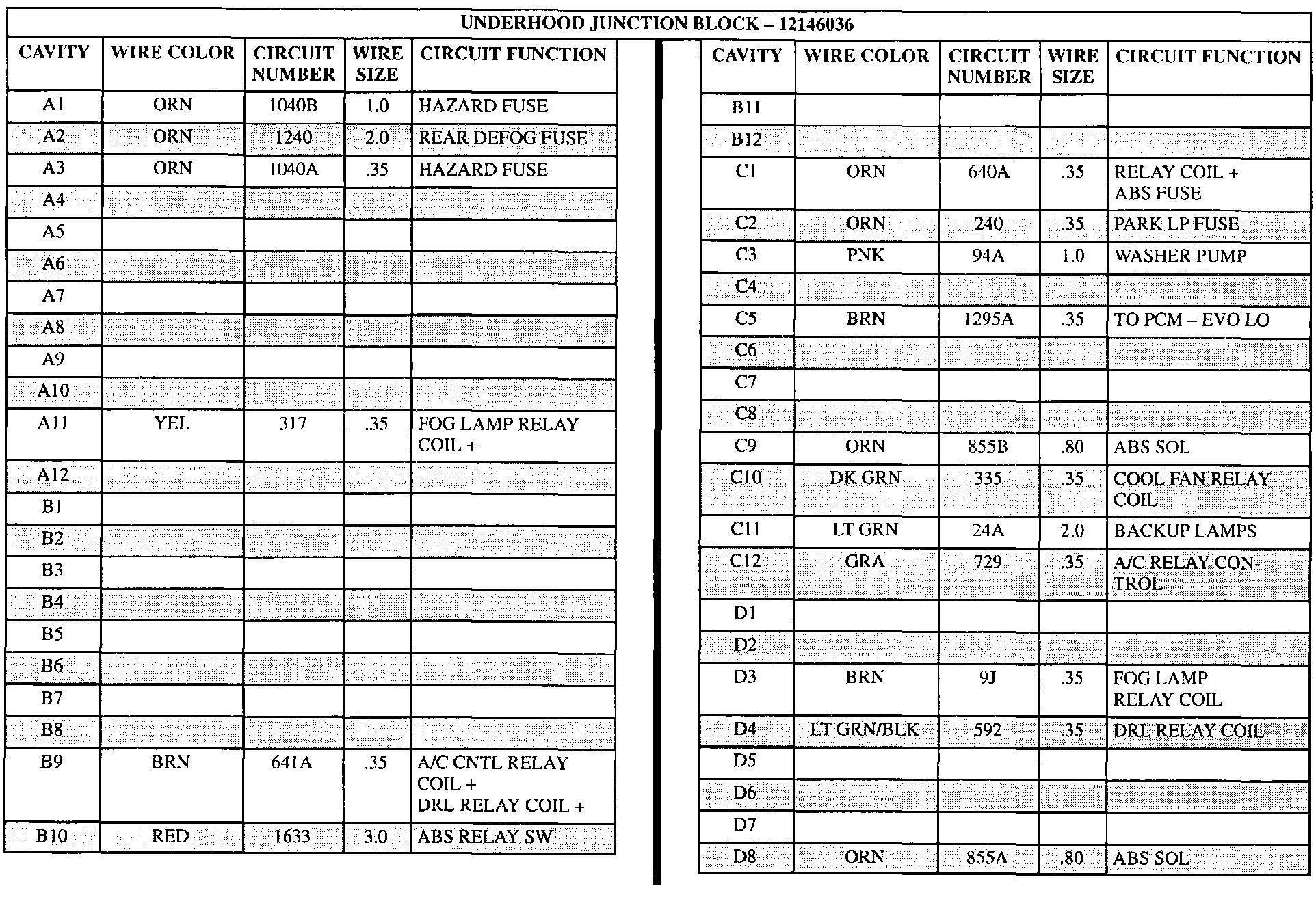

Underhood Junction Block - I/P (Part 1 Of 2):

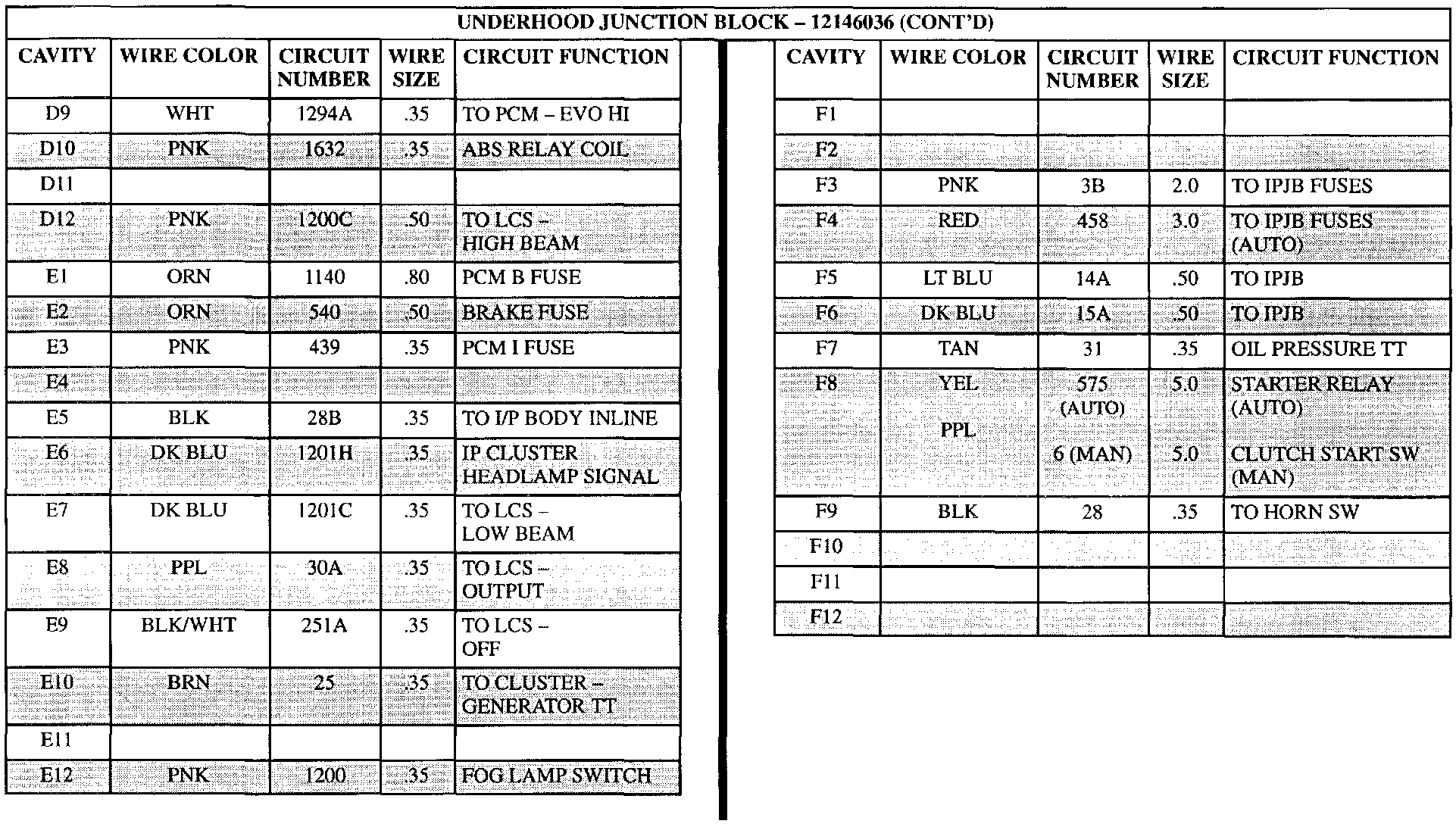

Underhood Junction Block - I/P (Part 2 Of 2):
