Rear Toe Adjustment

1. Loosen the rearmost inboard lateral link to crossmember fastener on one of the rear wheels.

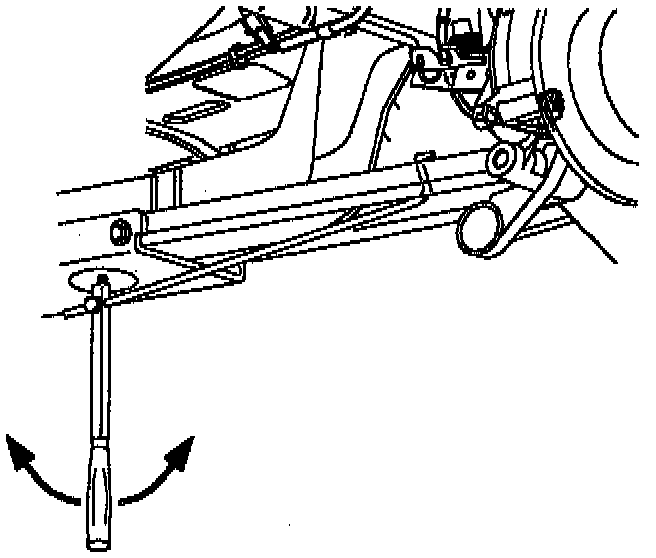

2. With SA9158S (or equivalent), move lateral link in the direction of necessary toe correction (right side shown, left side opposite).
3. Tighten the lateral link-to-crossmember fastener.
- Torque: 120 Nm (89 ft. lbs.)
4. Check toe and adjust if necessary.
5. Repeat procedure for other rear wheel.
