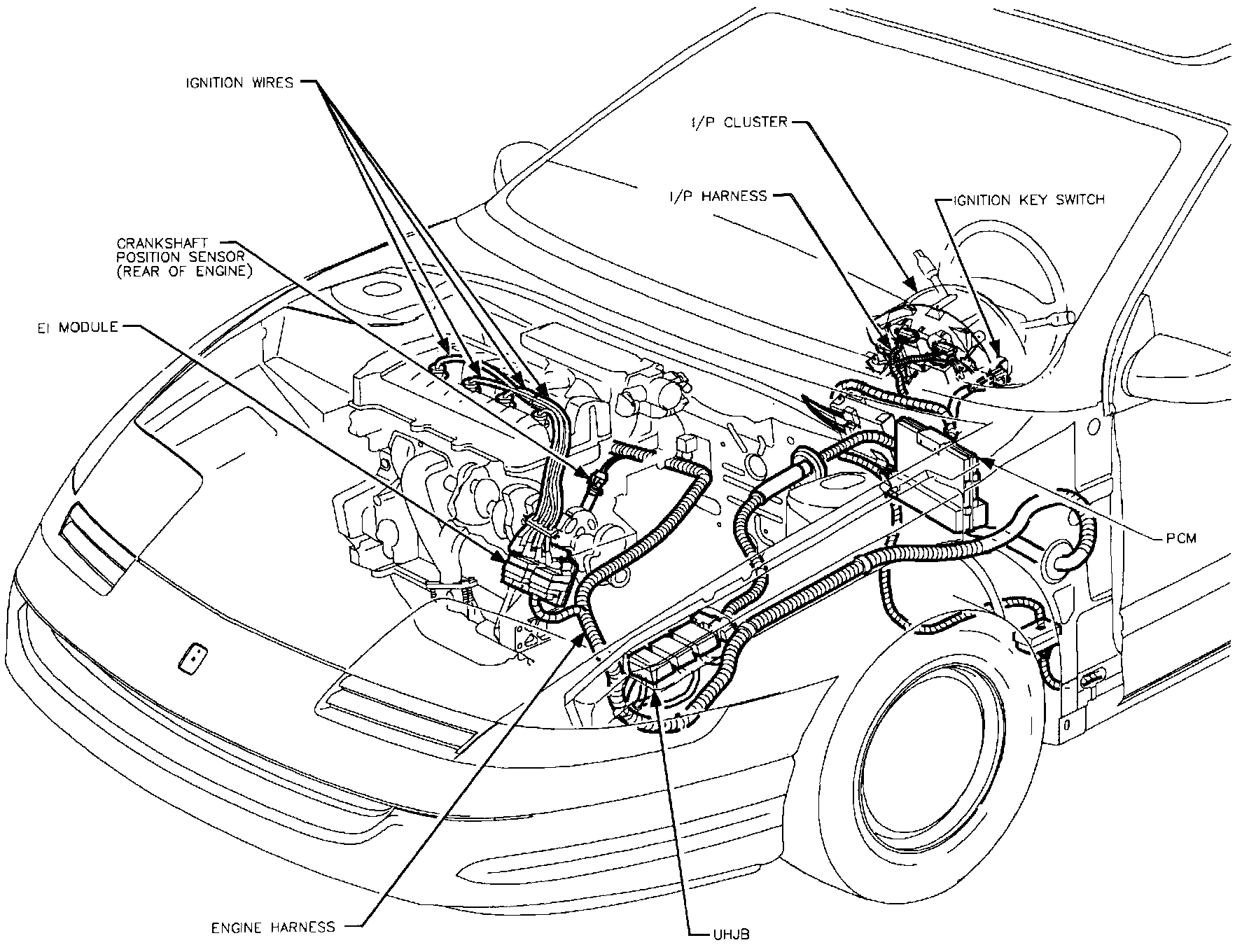

Engine Harness

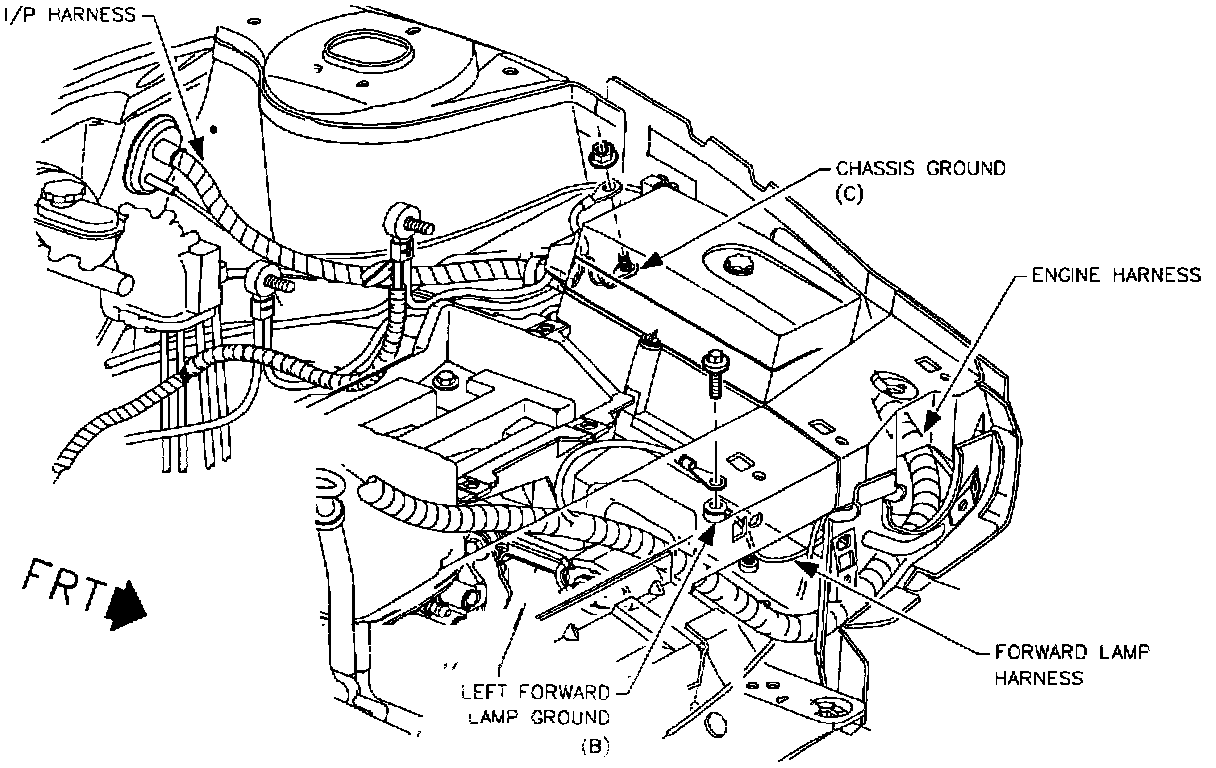

Left Forward Lamp Ground (B) And Chassis Ground (C):




PCM Ground, Engine Ground, PCM & O2S Ground:




Ignition System Component Location:




Instrument Cluster Telltales And Signal Inputs Component Location:




Back-Up Lamps Component Location:
