Home >> Saturn >> 1997 >> SL L4-1.9L SOHC VIN 8 >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Fog/Driving Lamp Relay >> Locations

Fog/Driving Lamp Relay: Locations

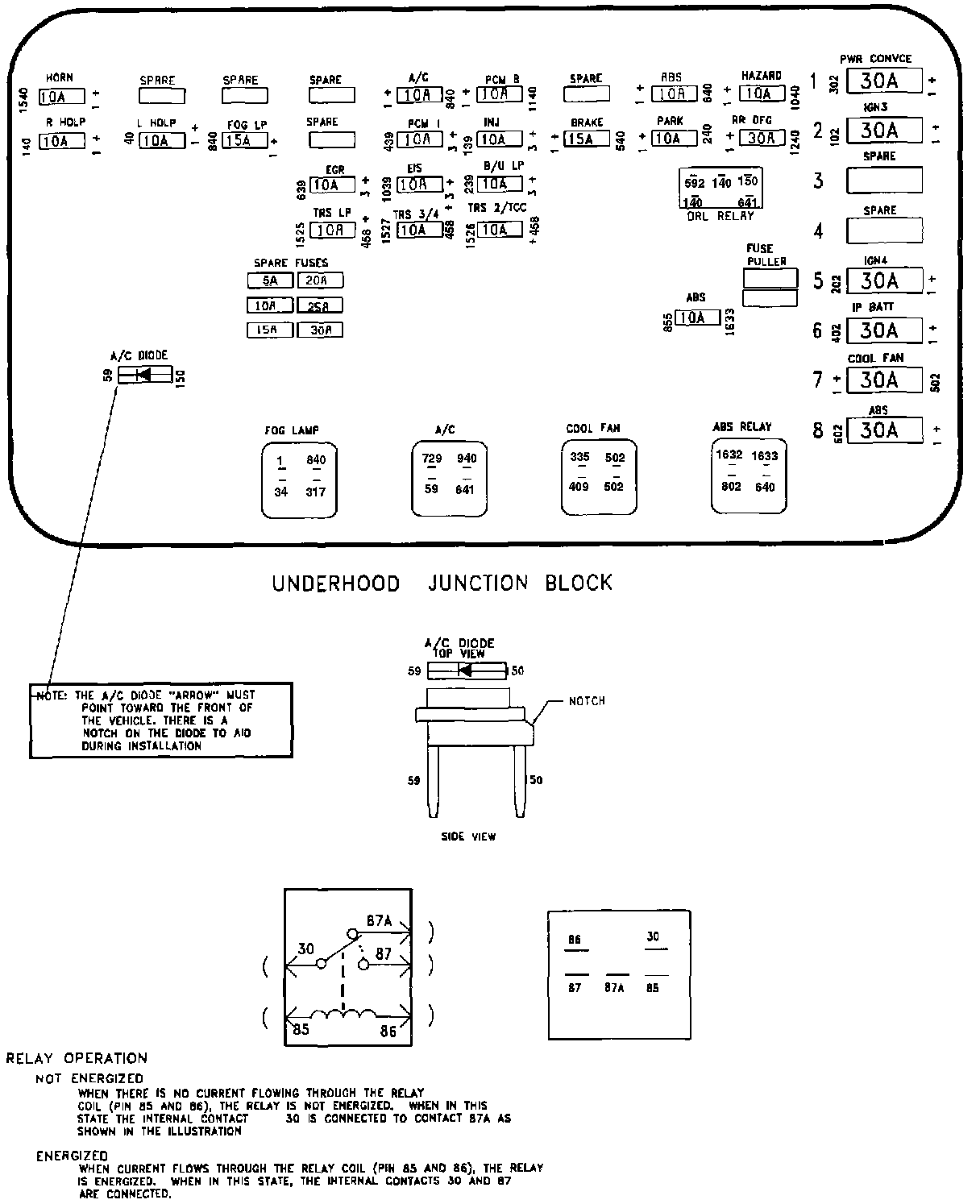

Underhood Junction Block (UHJB):




Battery System Component Location:




Ignition System Component Location:
