Home >> Saturn >> 1997 >> SL L4-1.9L SOHC VIN 8 >> Repair and Diagnosis >> Lighting and Horns >> Dome Lamp >> Diagrams >> Connector Views

Connector Views

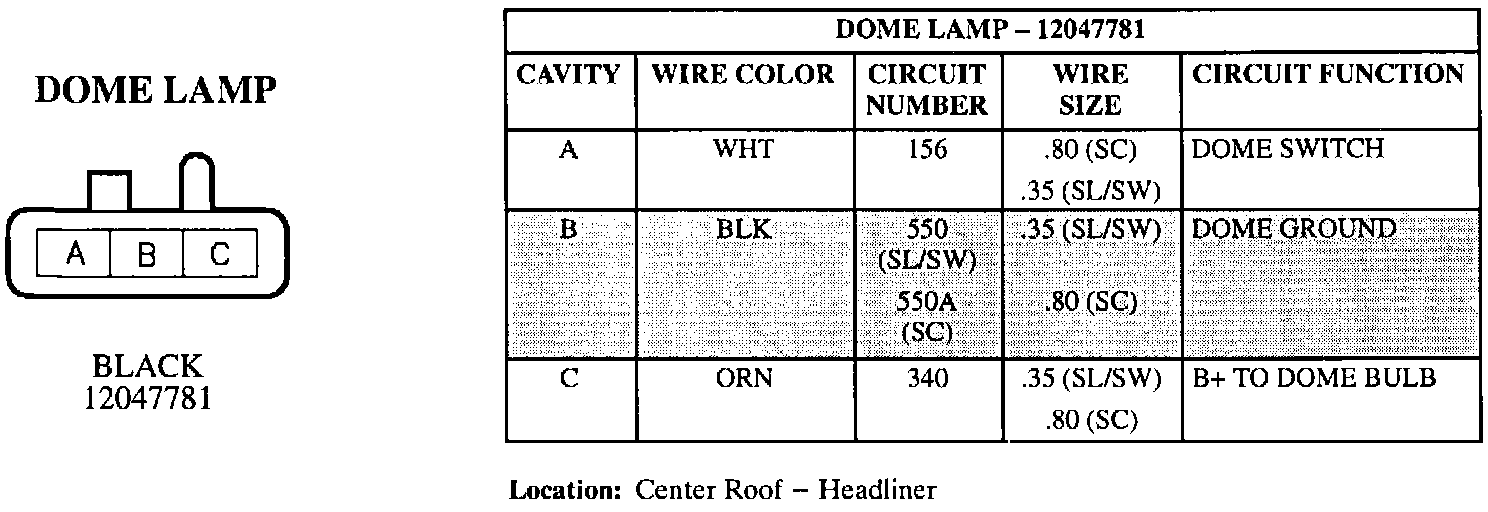

Dome Lamp:
