Chart 8 A/C Compressor Does Not Operate

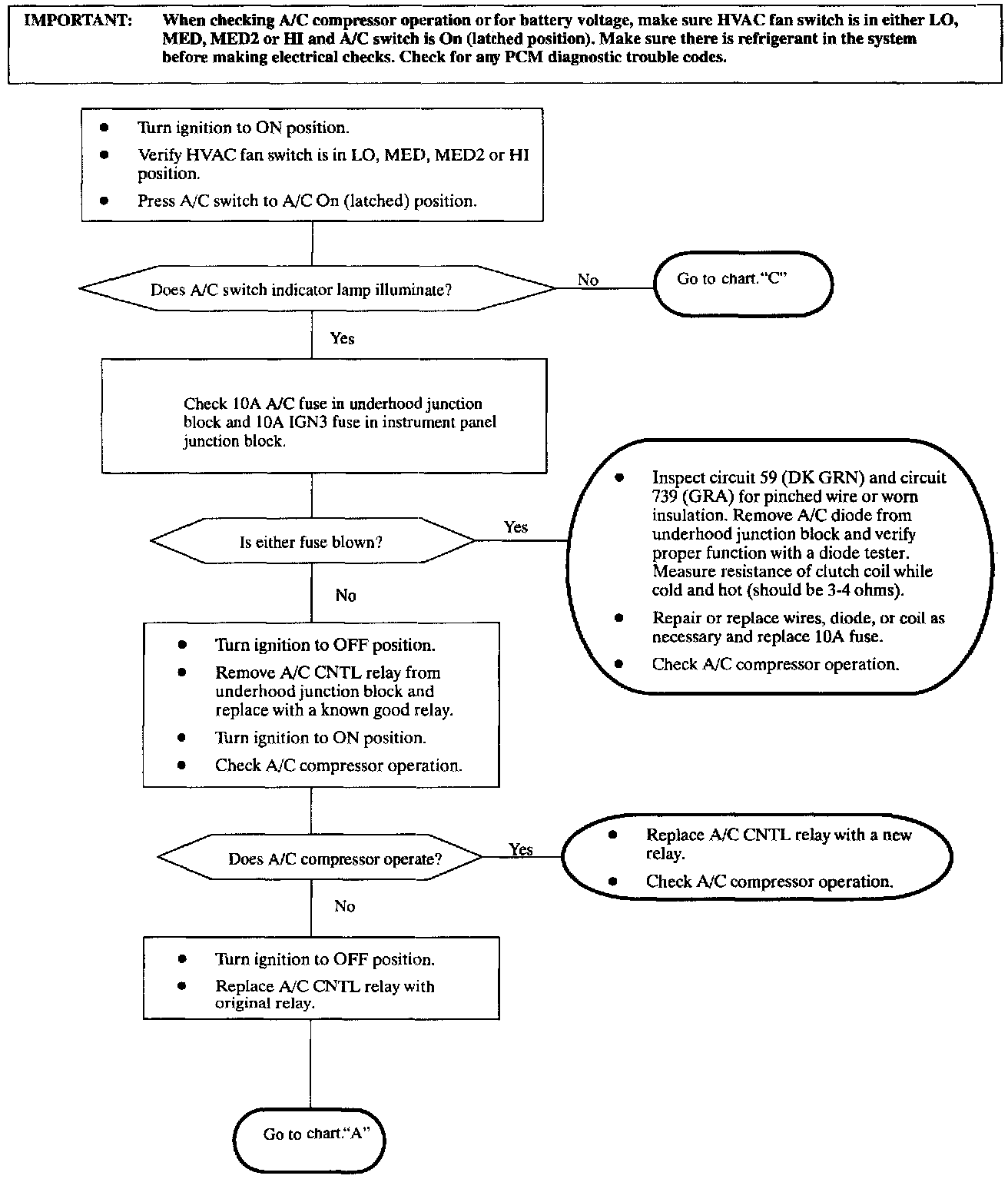

Chart 8, 1 Of 5:



Chart 8a, Part 2 Of 5:



Chart 8b, Part 3 Of 5:



Chart 8c, Part 4 Of 5:



Chart 8d, Part 5 Of 5:
