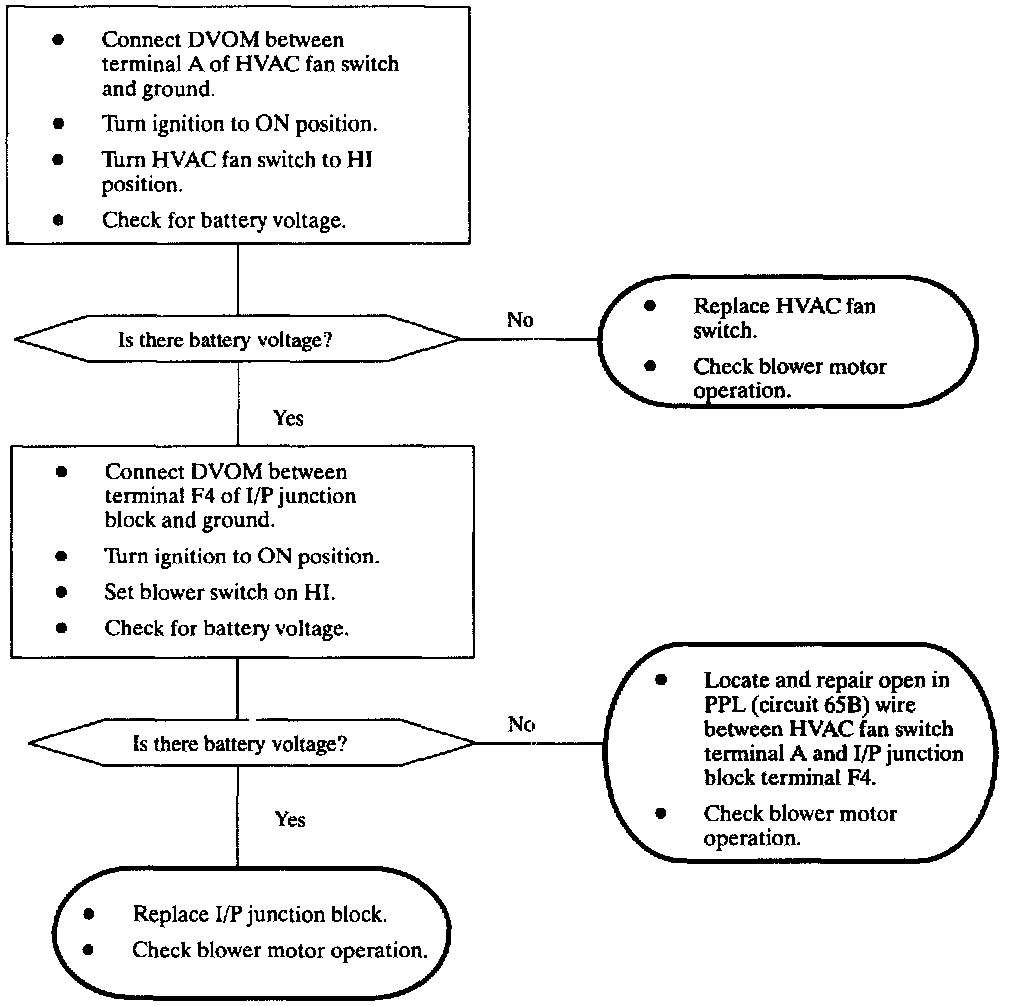

Chart 5 Blwr Mtr Operable Lo, Med, Med2, Inop in Hi

A interim design change in 1997 added a relay to the blower circuit. (see chart above for VIN)

For 1997 vehicles built prior to the listed VIN, use the following chart.

Chart 5:

For 1997 vehicles built after to the listed VIN, use the following chart.
