Home >> Saturn >> 1997 >> SL L4-1.9L SOHC VIN 8 >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Charts >> Chart 2 Blower Motor Operates at All Speeds - Ignition Off

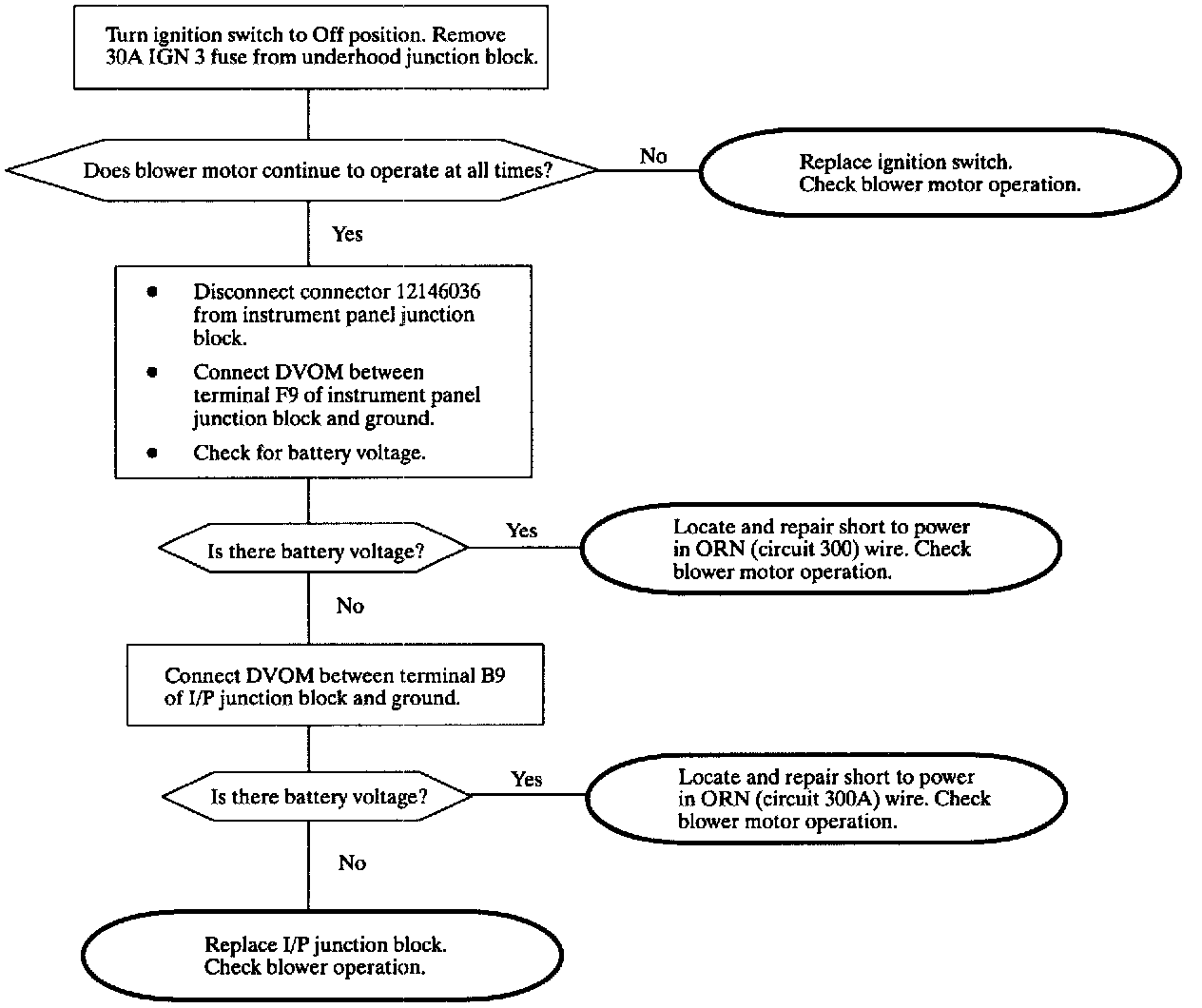

Chart 2 Blower Motor Operates at All Speeds - Ignition Off

Chart 2:
