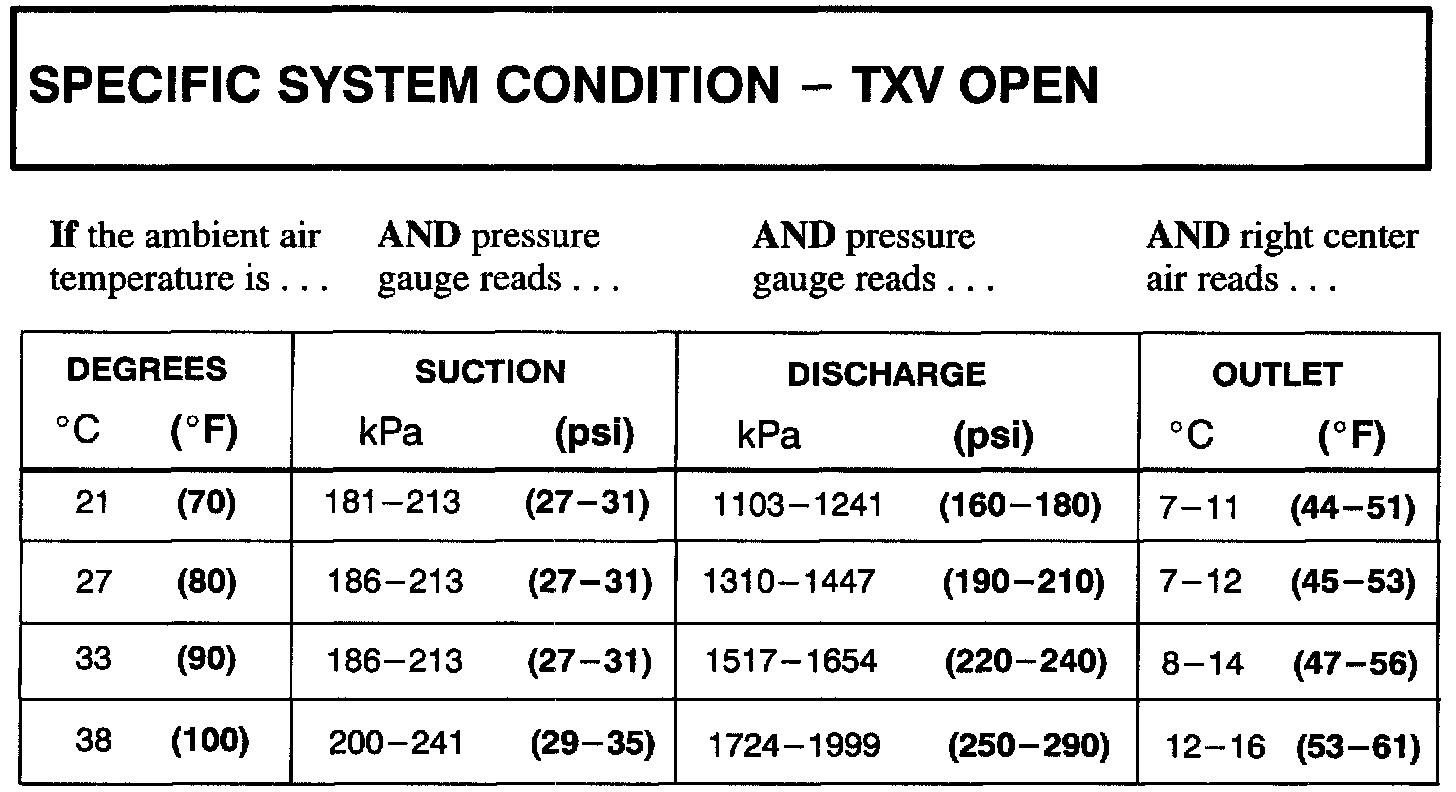

Specific System Condition - TXV Open

KEY: 1. HIGHER THAN NORMAL SUCTION PRESSURE.
2. HIGHER THAN NORMAL OUTLET TEMPERATURE.

THEN: Thermal Expansion Valve (TXV) may be open.

^ Confirm by touching the suction and discharge pipes at the compressor. Suction pipe will be cool to cold and discharge pipe will be warm to hot.
^ Replace TXV
^ After repair return to diagnostic flow chart.
Diagnostic Flow Chart
