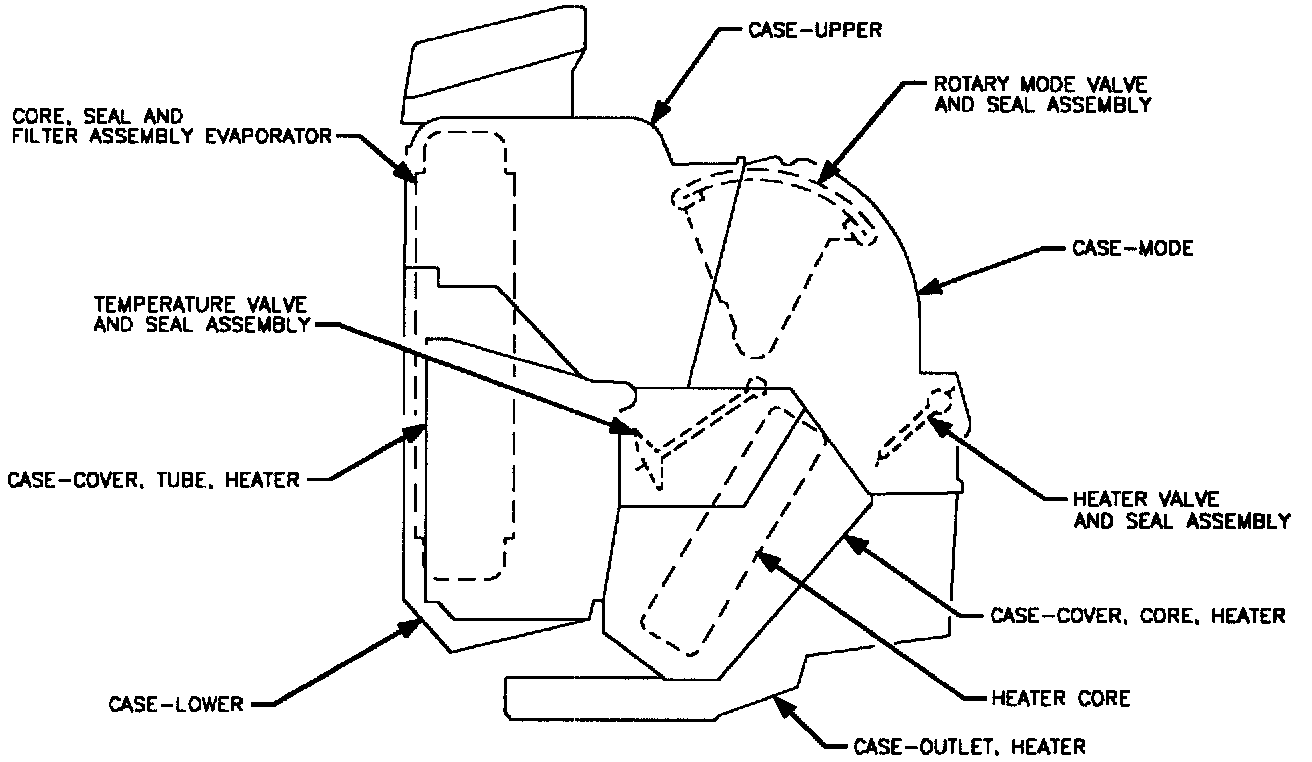

HVAC Module Component Location Identification

^ Case Upper:
Contains air inlet housing, blower motor resistor recirc door and motor.

^ Rotary Mode Valve and Seal Assembly:
Cloth covered air distribution valve contained within its own case or housing.

^ Heater Valve and Seal:
Part of Mode Valve case assembly.

^ Case Cover Heater Core:
Contains Heater Core and pipe assembly.

^ Case Lower:
Contains heater tube case cover, Blower Motor, Temperature Valve and seal assembly, Evaporator Core and filter assembly.
