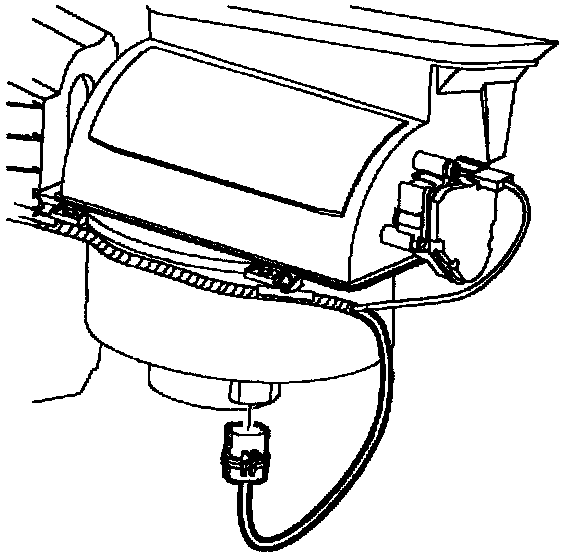

Blower Motor: Service and Repair

REMOVAL
1. Disconnect blower motor electrical connector.
2. Remove blower motor mounting screws.
3. Remove blower motor and cover.

INSTALLATION
1. Install blower motor and cover.
2. Install blower motor mounting screws.
Torque: 1.7 N.m (15 in-lbs)

3. Install electrical connector to blower motor.
