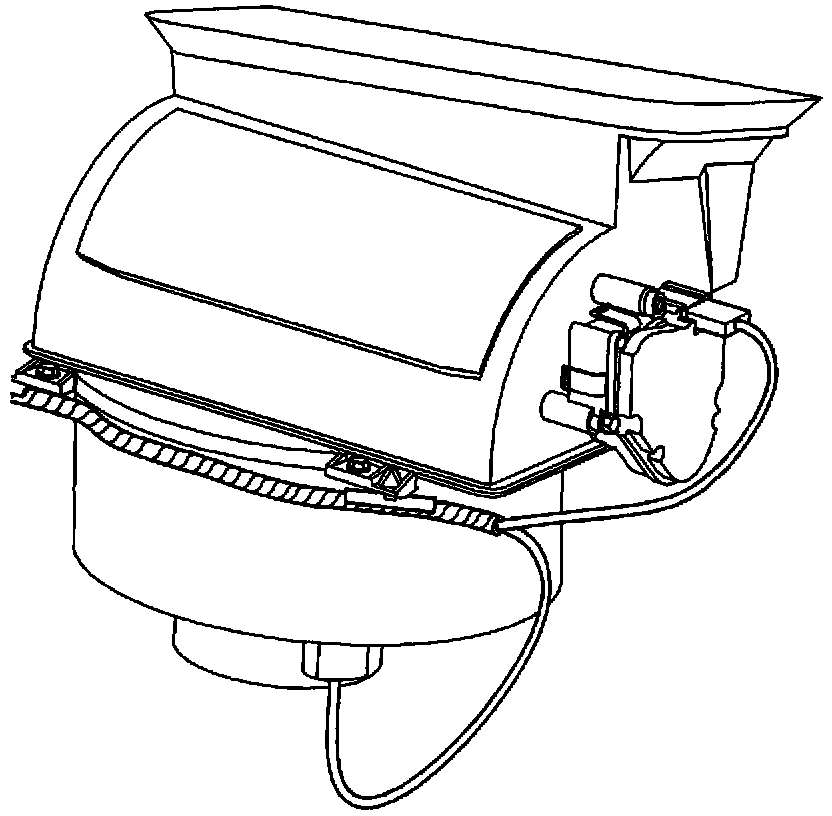

Air Door Actuator / Motor: Description and Operation

The recirc motor rotates the valve between inside and outside air. When recirc is activated, the motor allows the air inside the passenger compartment to be drawn back into the HVAC module. Some outside air is also drawn in. when recirc is not activated fresh outside air is drawn into the system.
