Timing Chain, Sprockets, Guides and Tensioner Inspection
Check the timing chain for wear, damage, and cracks.

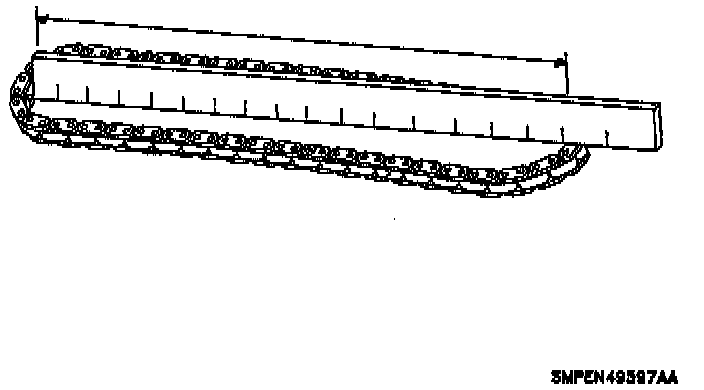

Measure inside diameter:
Standard is 419 - 422 mm (16.50 - 16.61 inch)
Service limit is 426 mm (16.77 inch) max.
Check the timing chain for wear, damage, and cracks.
Measure inside diameter:
Standard is 419 - 422 mm (16.50 - 16.61 inch)
Service limit is 426 mm (16.77 inch) max.
