Timing Chain Guide: Testing and Inspection

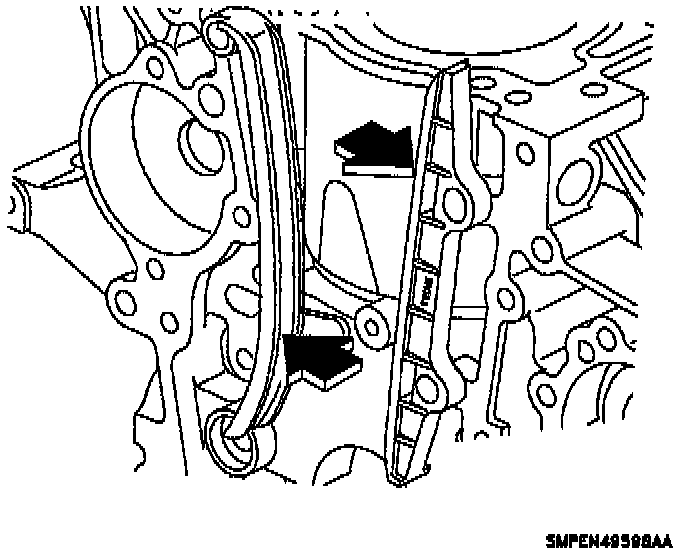

Inspect the chain guides for wear and cracks. Measure track wear: Standard is 0.0 mm and service limit is 2.5 mm (0.0984 inch).
