Clamp Positioning

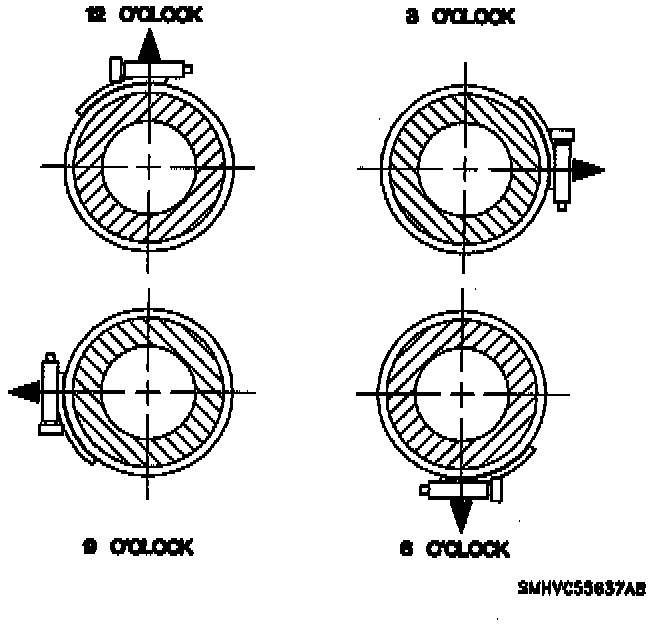

Hose clamps have been positioned at the factory for ease of assembly and removal in service. Clock positions are called out for all installations (refer to illustration). Clamps must be installed in designed position to prevent damage to other components. Screw clamps shown in illustration.
