Radiator Drain Plug: Service and Repair

REMOVAL
1. Unscrew drain plug.

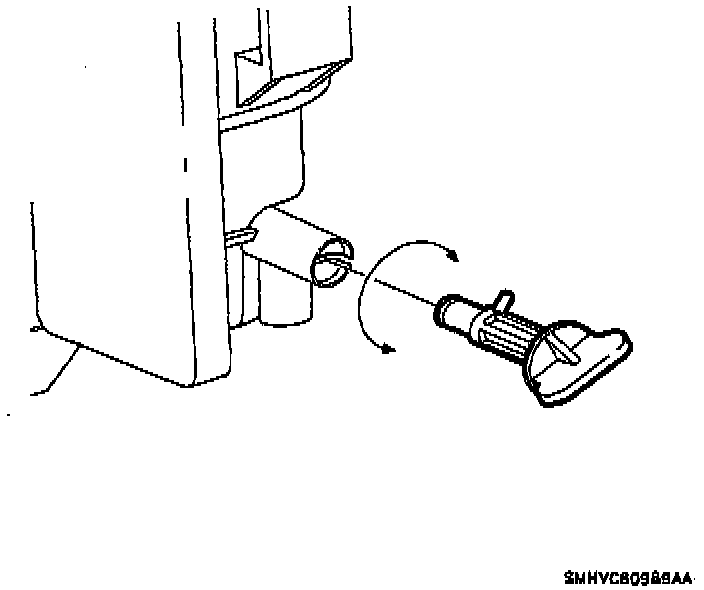

2. Align drain plug pin with horizontal slot in radiator end tank.
3. Pull drain plug straight out.

INSTALLATION
1. Lubricate drain plug O-ring.
2. Align drain plug pin with slot in radiator end tank and push straight inch
3. Turn drain plug to close.
