Radiator: Description and Operation

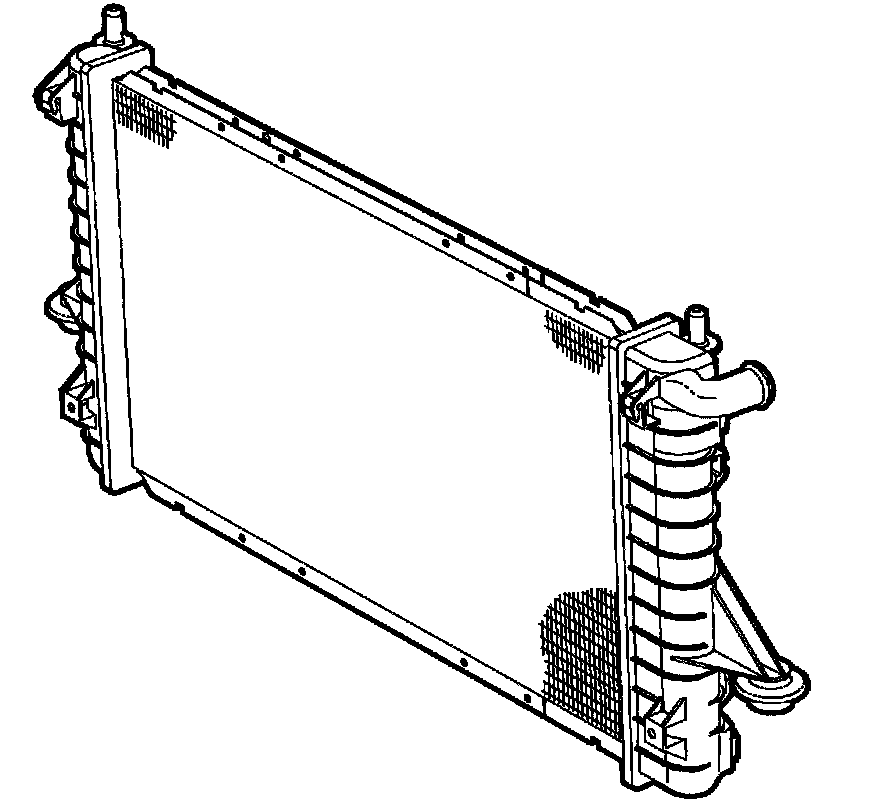

A cross-flow radiator is used on all models. Tanks on this type radiator are located to the right and left of the core. All service radiators have oil coolers with inlet outlet fittings for transaxle fluid circulation. On vehicles equipped with a manual transaxle, keep plugs on cooler fittings.
