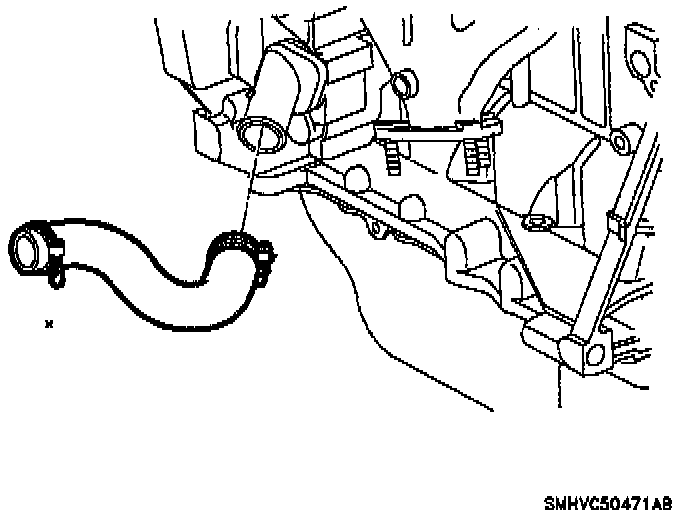

Lower

REMOVAL
1. Drain cooling system.
2. Remove clamp and hose from thermostat housing.
3. Remove clamp and hose from radiator outlet neck.
4. Remove radiator hose from vehicle.

INSTALLATION
1. Install hose and clamp on engine outlet. Position clamp at 1-2 o'clock.
2. Install hose and clamp on radiator outlet neck. Position clamp at 11 o'clock.
3. Fill cooling system and leak test.
4. Install and tighten pressure cap.
