Without A/C

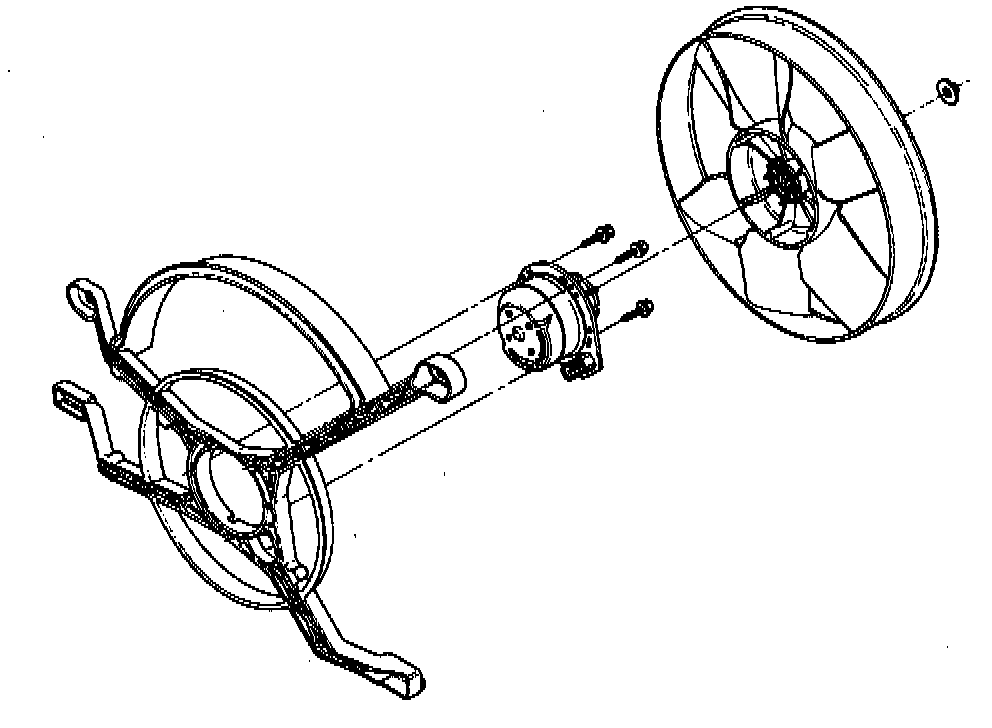

DISASSEMBLY
1. While holding fan, remove fan to motor nut (left hand thread) and pull fan off of motor shaft.
2. Remove screws holding fan motor to bracket.
3. Remove motor from fan bracket.

ASSEMBLY
1. Install motor in bracket.
2. Install and tighten fan motor-to-bracket screws.
3. Install fan on motor shaft.
4. Install and torque fan nut. Torque to 3-5 Nm (27-44 inch lbs.).
