With A/C

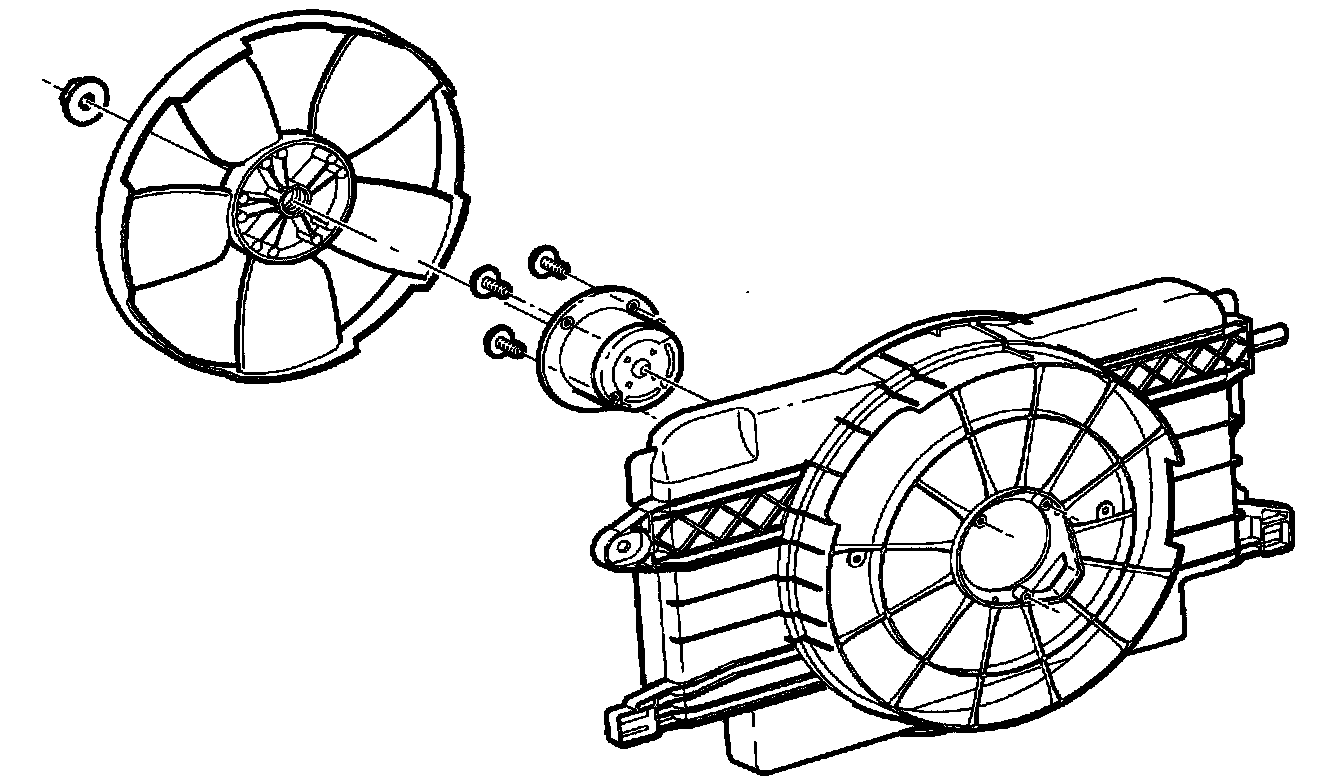

DISASSEMBLY
1. While holding fan, remove fan to motor nut (left hand thread) and pull fan off of motor shaft.
2. Remove screws holding fan motor to shroud.
3. Remove motor from fan shroud.

ASSEMBLY
1. Install motor in shroud.
2. Install and tighten fan motor to shroud screws.
3. Install fan on motor shaft.
4. Install and torque fan nut. Torque to 3-5 Nm (27-44 inch lbs.).
