Home >> Saturn >> 1997 >> SL L4-1.9L SOHC VIN 8 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Transmission Temperature Sensor/Switch, A/T

Transmission Temperature Sensor/Switch, A/T

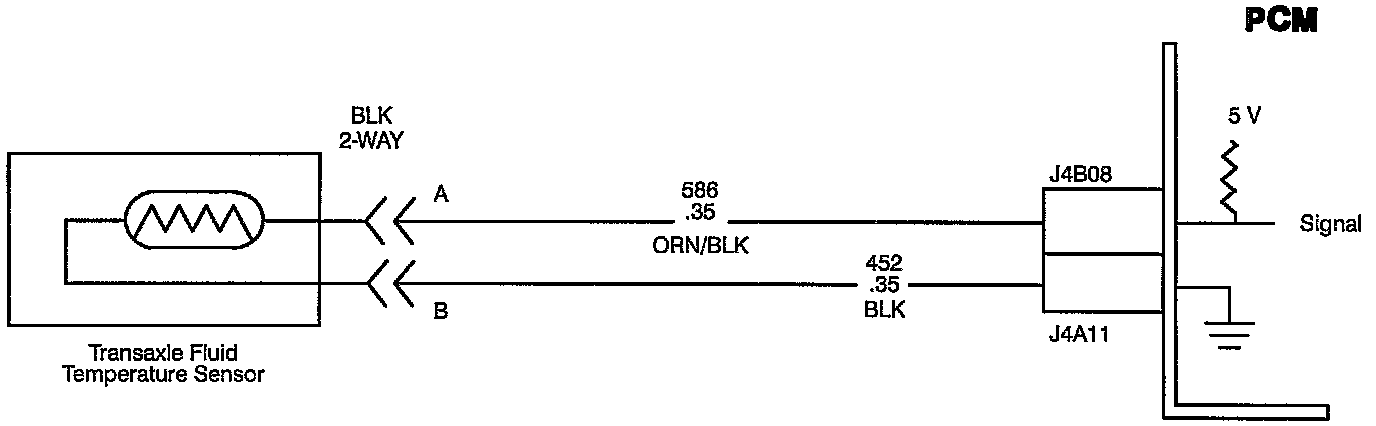

Wiring Diagram:
