Battery

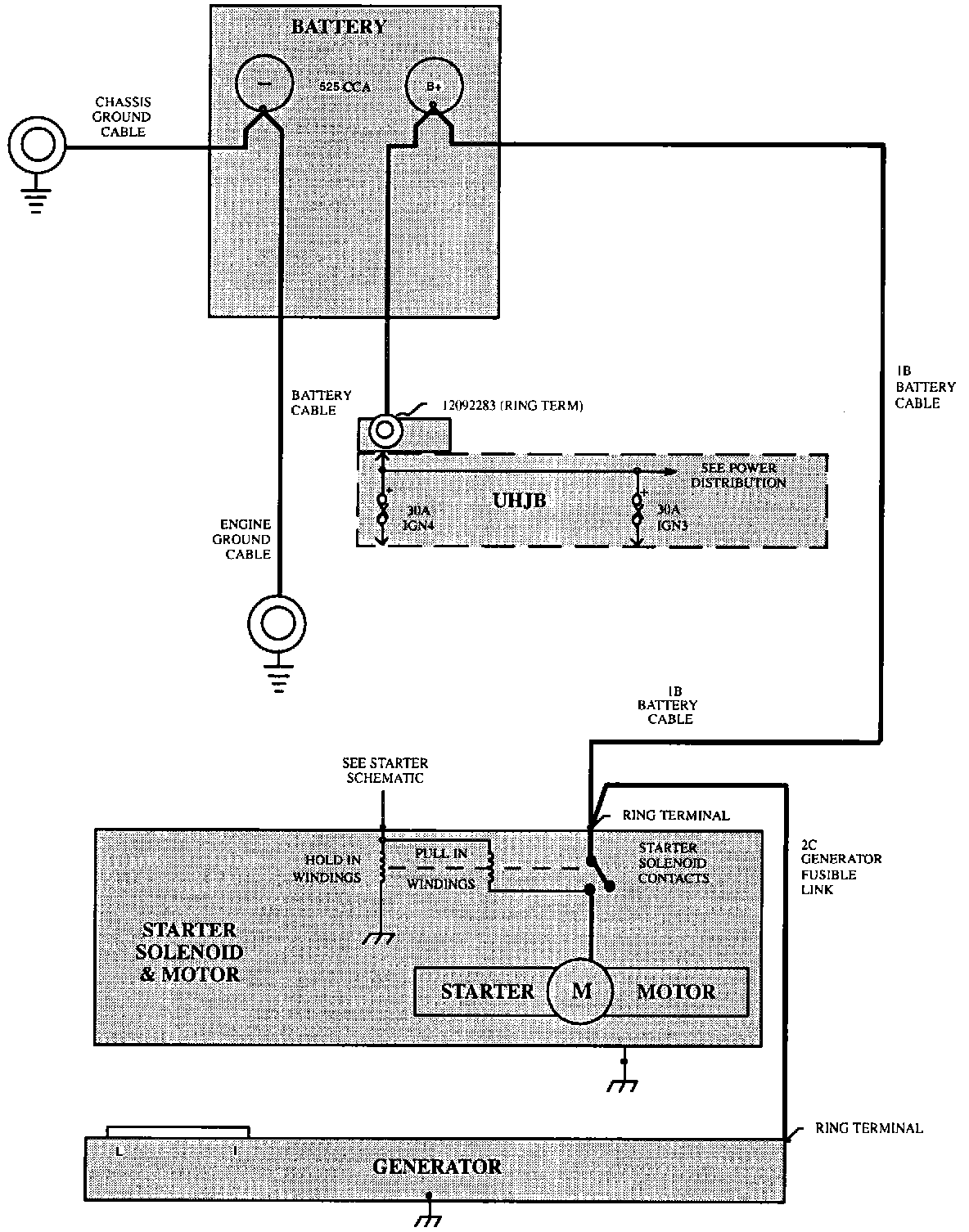

Battery:

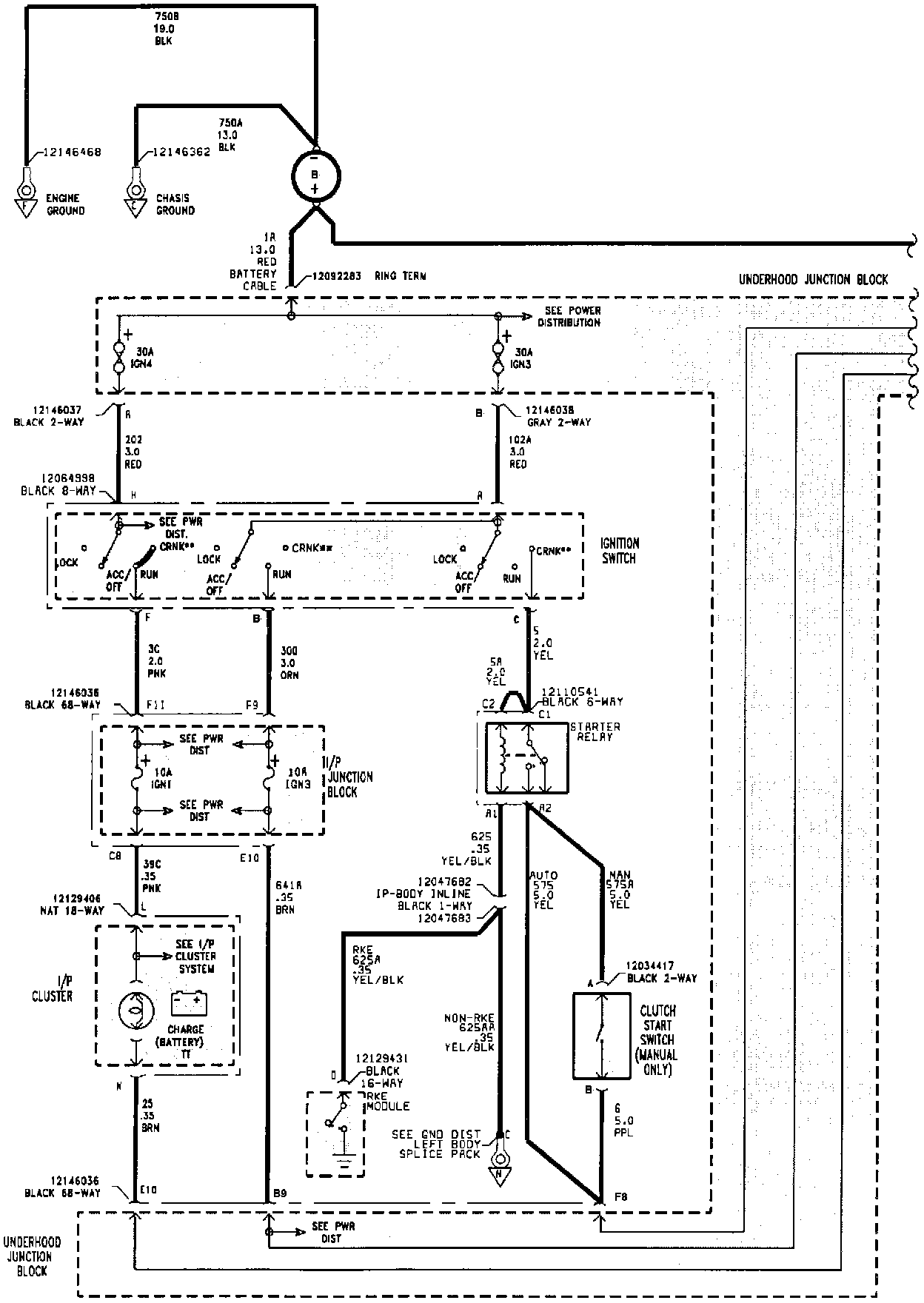

Battery Electrical Schematic (Part 1 Of 2):

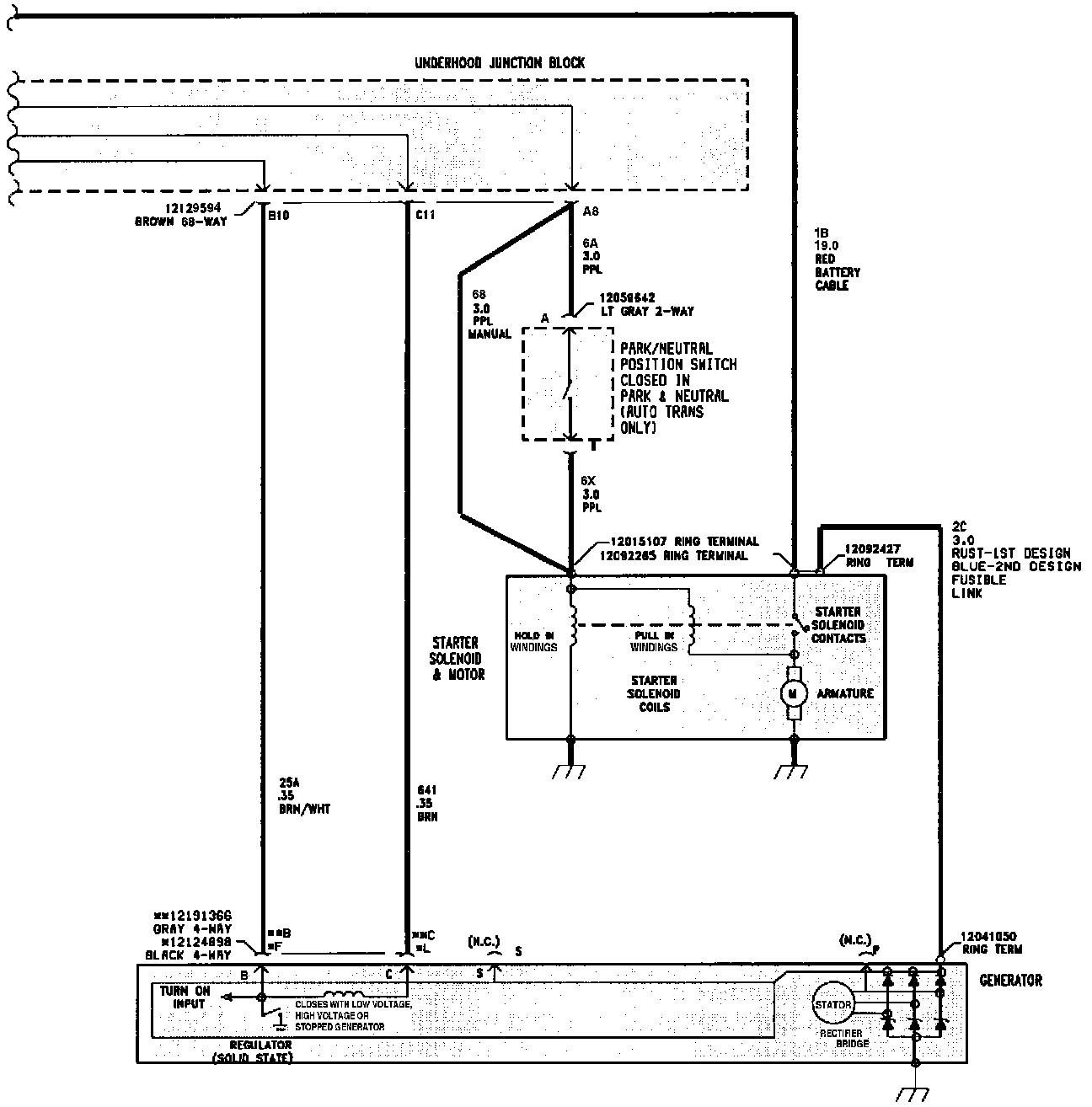

Battery Electrical Schematic (Part 2 Of 2):
