Home >> Saturn >> 1997 >> SL L4-1.9L SOHC VIN 8 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Shift Interlock, A/T

Shift Interlock, A/T

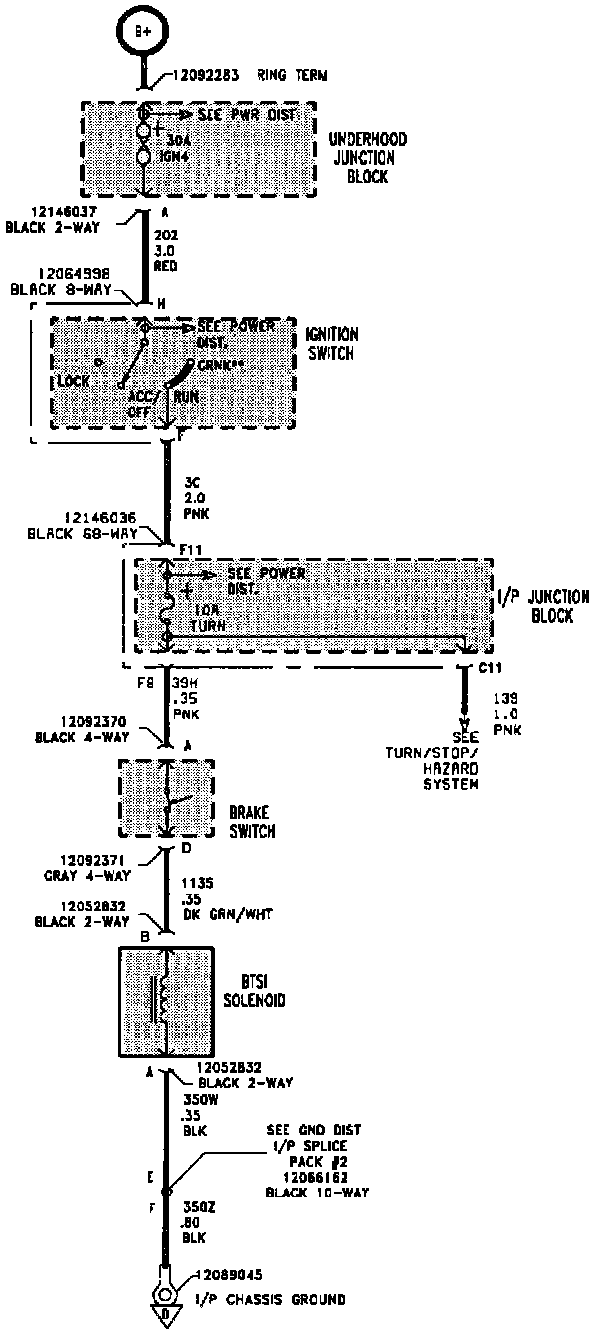

Brake Transaxle Shift Interlock (BTSI) System (Automatic Transaxle Only):
