Saturn
>>
1997
>>
SL L4-1.9L SOHC VIN 8
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Data Link Connector (DLC)
Data Link Connector (DLC)

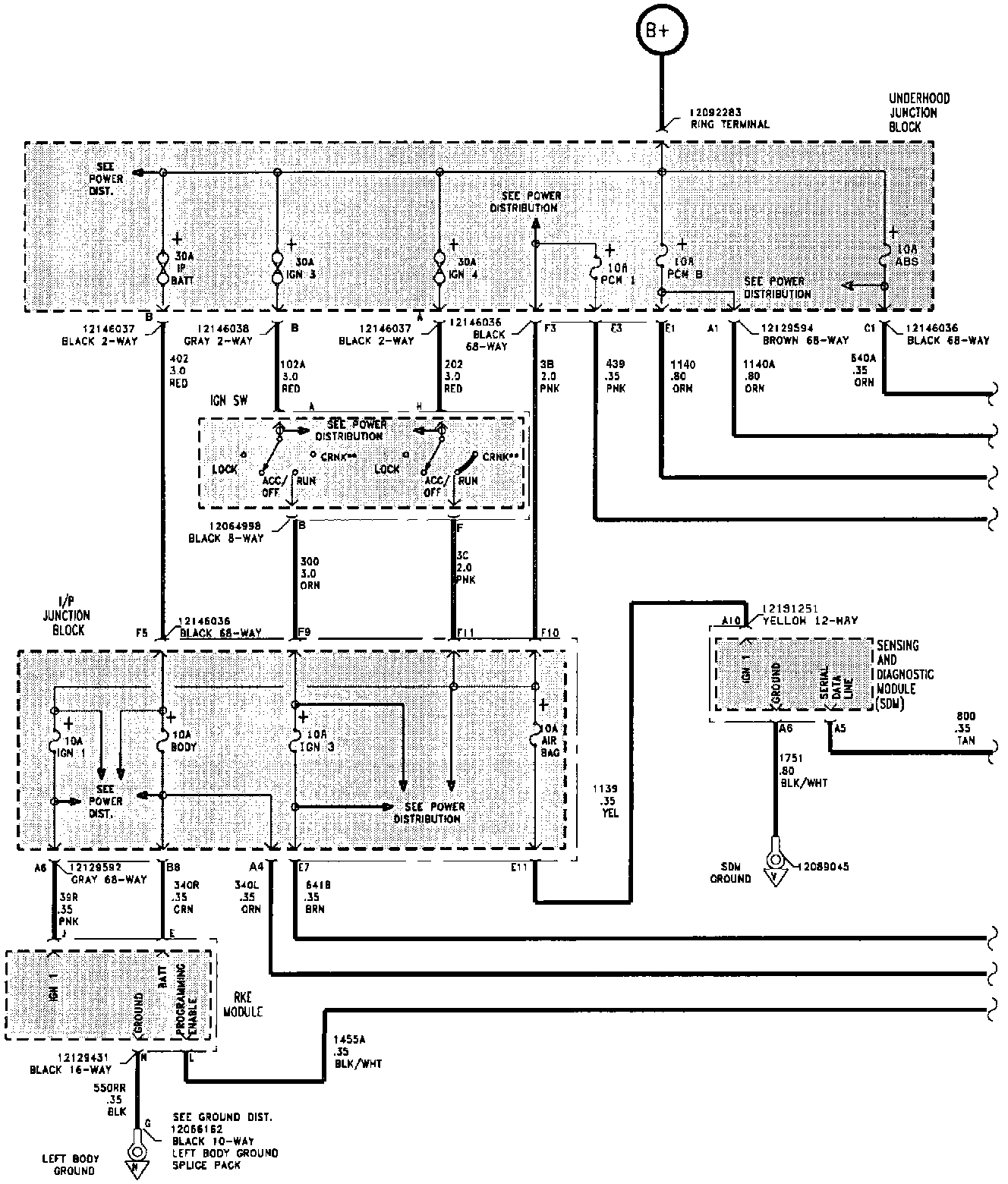

Data Link Connector (DLC) (Part 1 Of 2):

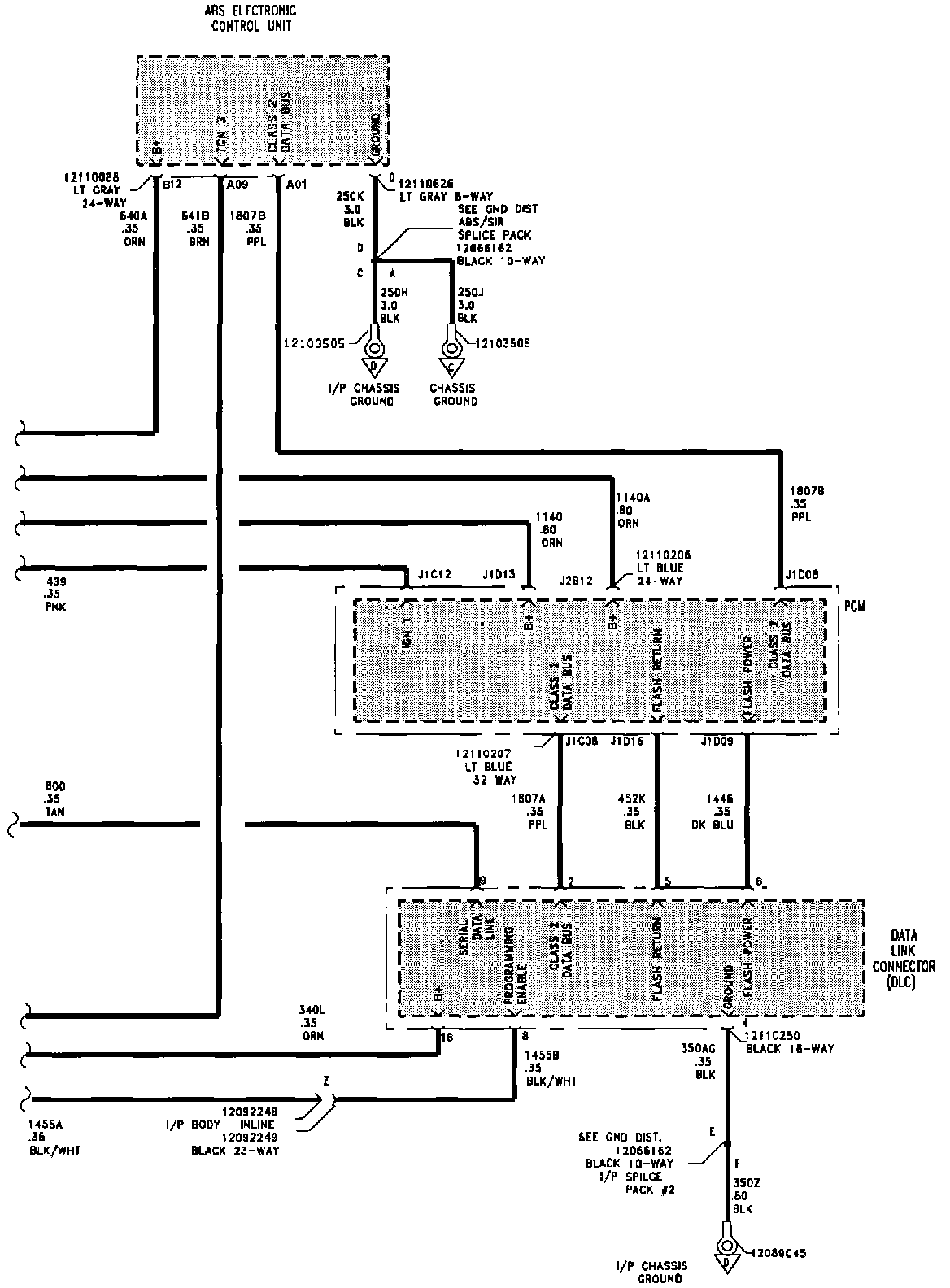

Data Link Connector (DLC) (Part 2 Of 2):
