Dome Lamp

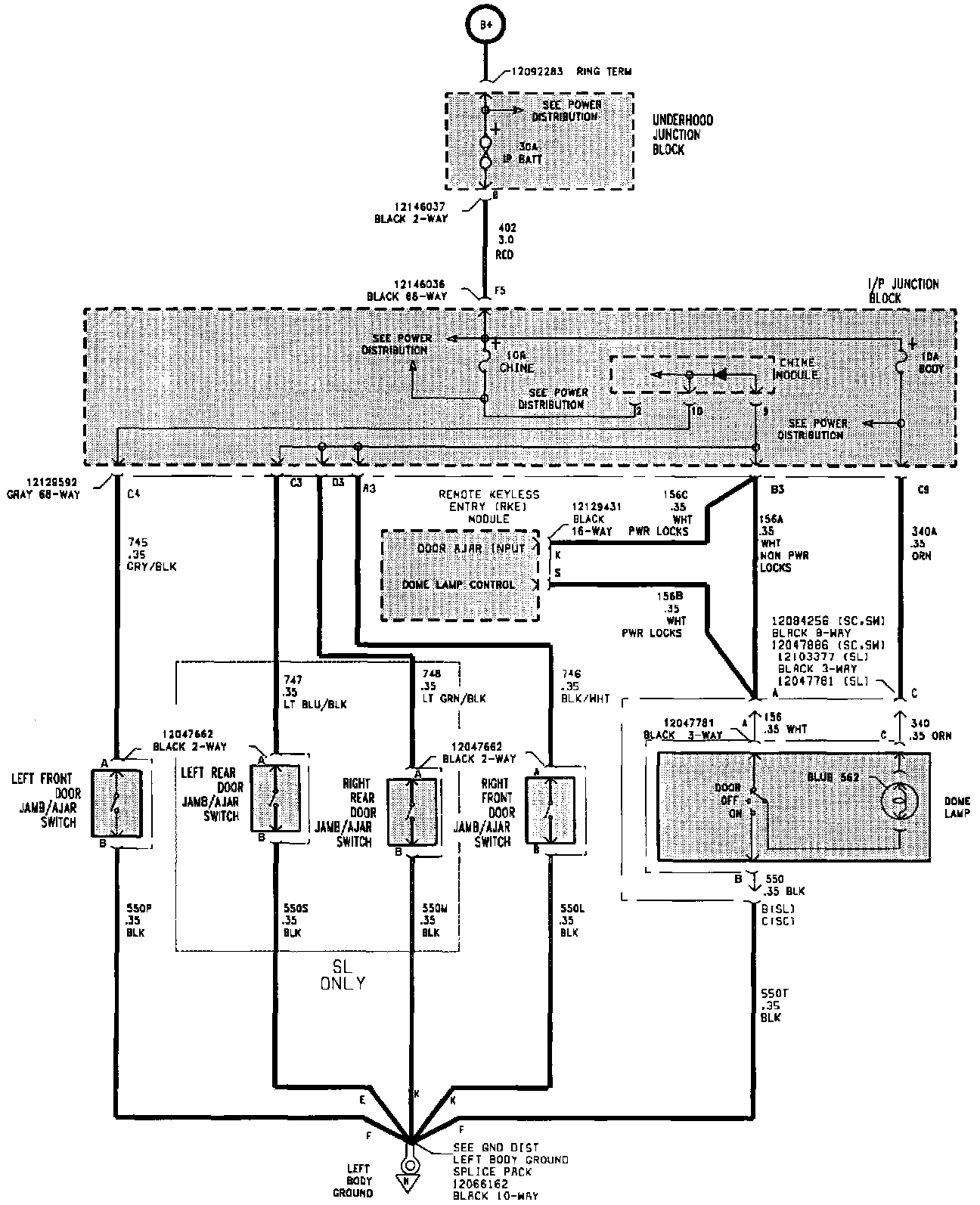

Interior Lamps: Dome Lamp:

Diagrams are part of the complete set of lighting diagrams located under Lighting and Horns/Diagrams/Electrical/Interior Lamps. Refer to this area if you need to find the accompanying diagrams or for testing information. Electrical Diagrams Testing and Inspection
