General

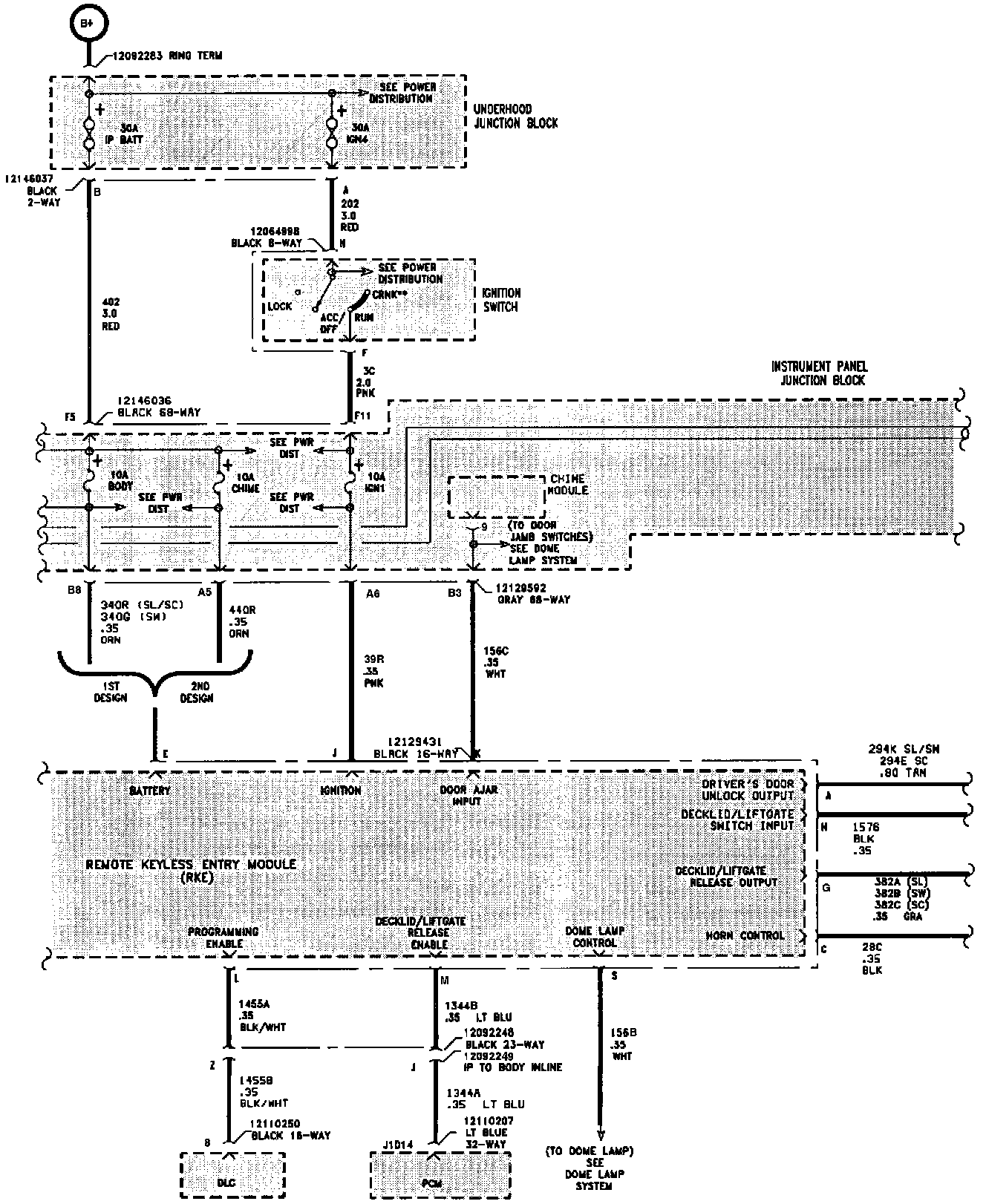

Remote Keyless Entry (RKE) And Security System:

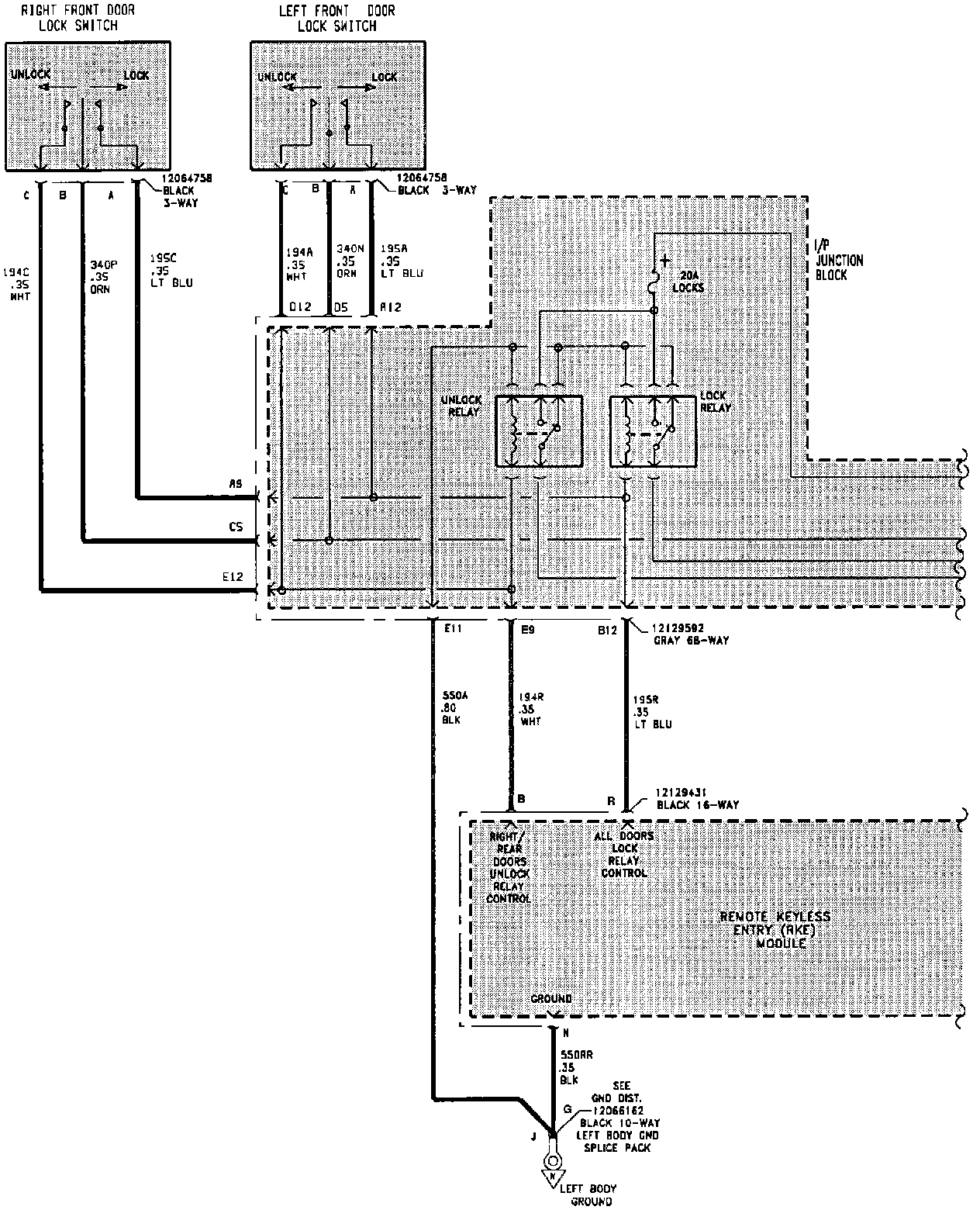

Remote Keyless Entry (RKE) And Security System:

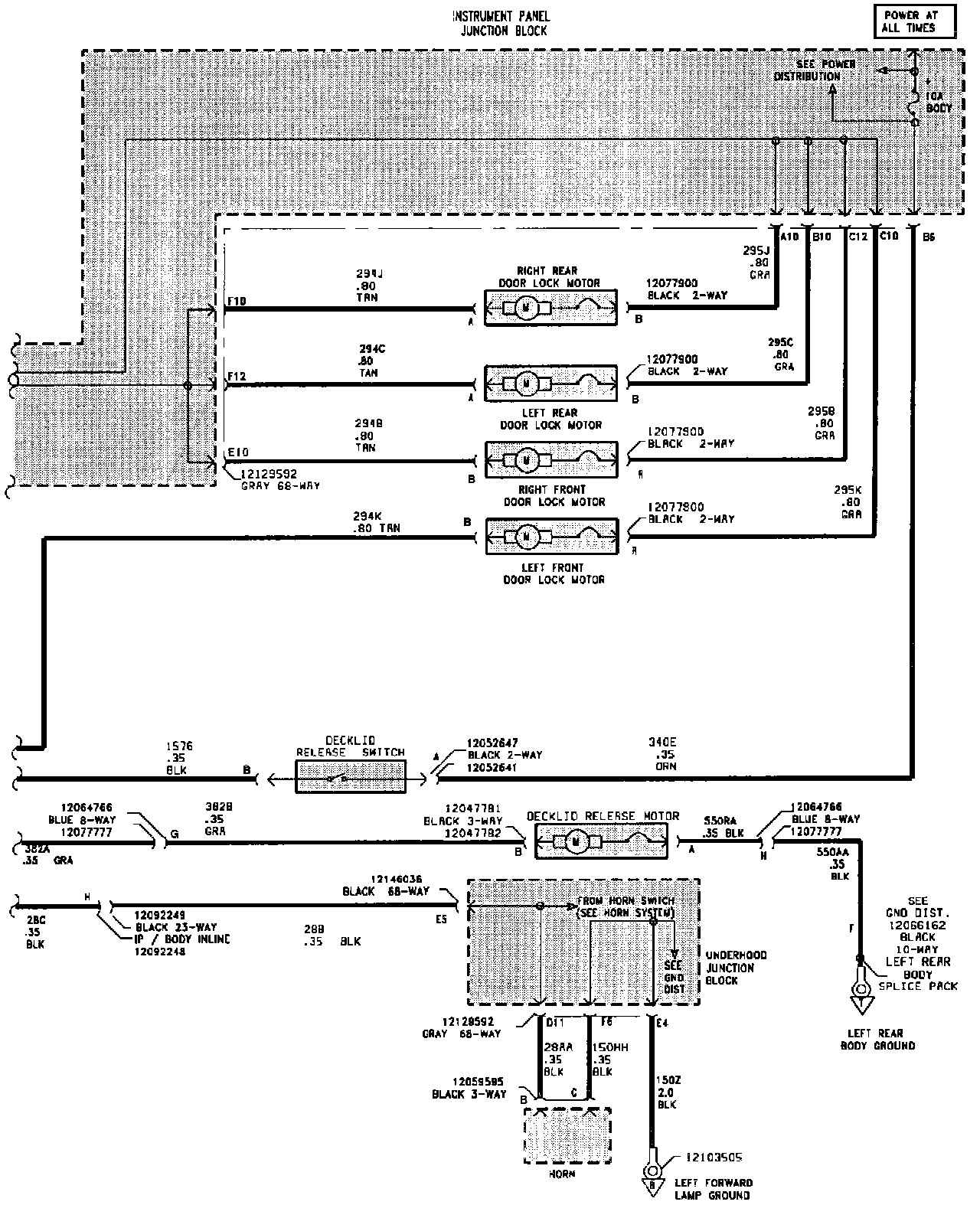

Remote Keyless Entry (RKE) And Security System:
