Telltales and DRL Logic

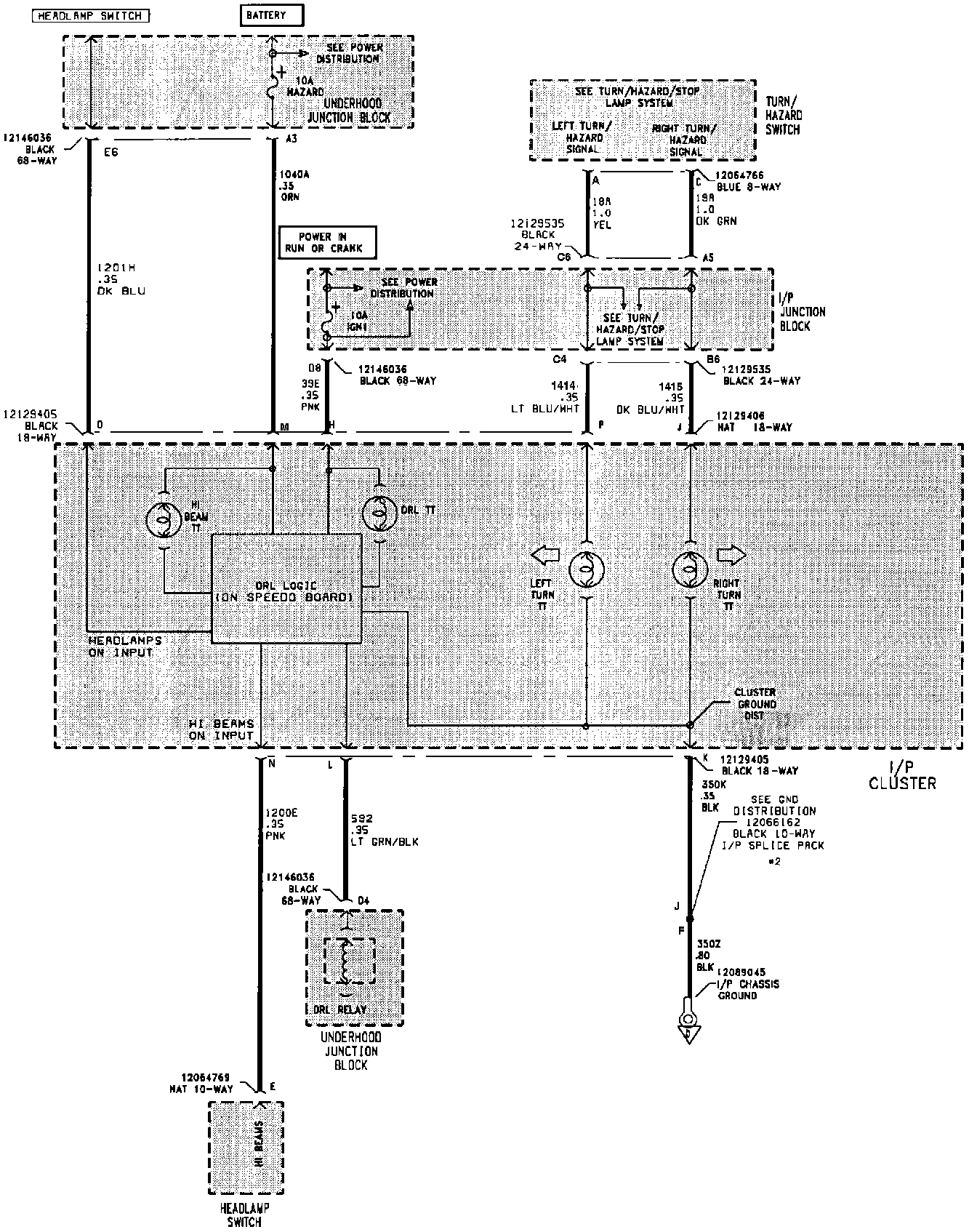

Instrument Cluster: Telltales And DRL Logic (Part 1 Of 2):

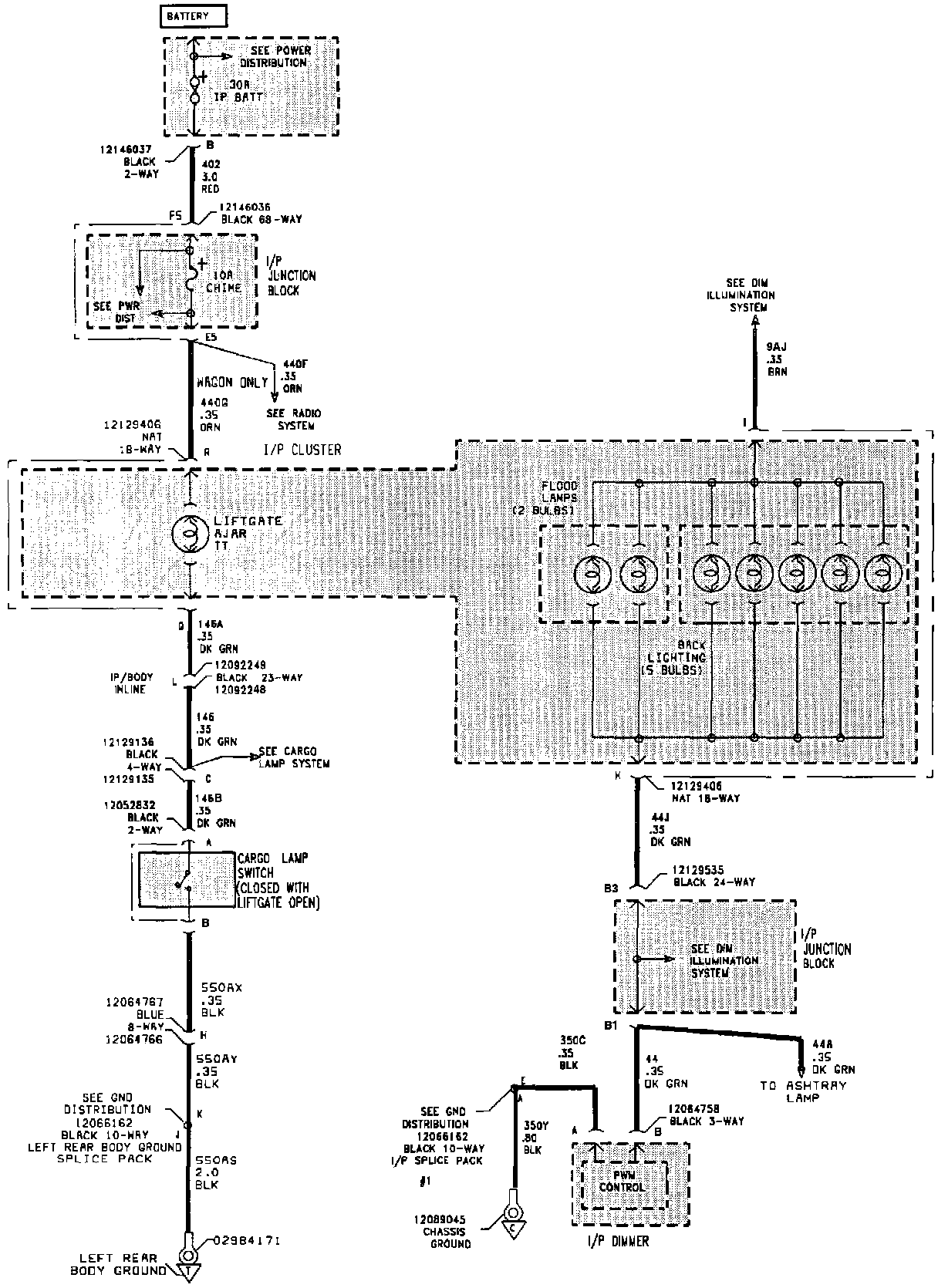

Instrument Cluster: Telltales And DRL Logic (Part 2 Of 2):
