Home >> Saturn >> 1997 >> SL L4-1.9L SOHC VIN 8 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device

Audible Warning Device

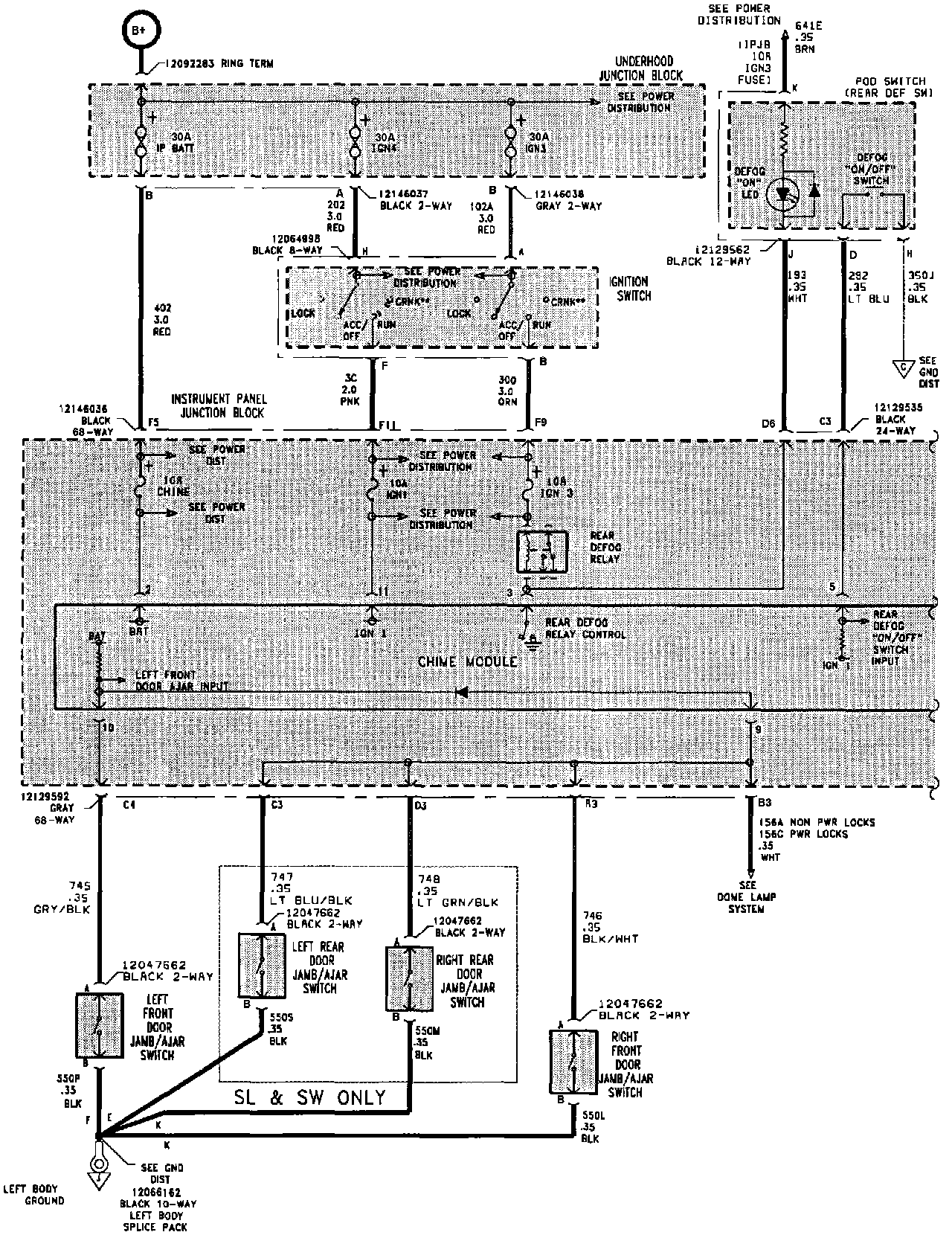

Audible Warnings: Chime Module (Part 1 Of 2):

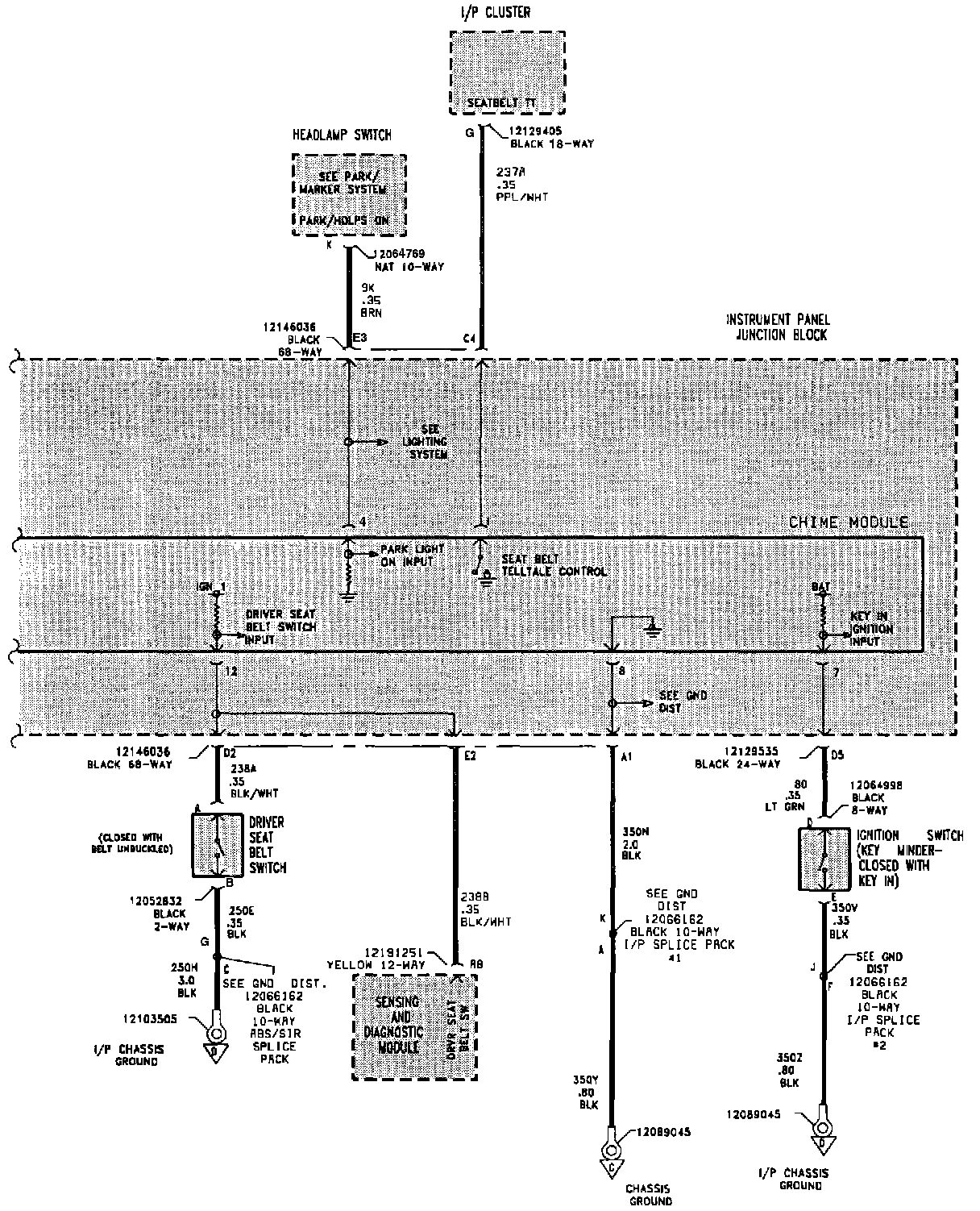

Audible Warnings: Chime Module (Part 2 Of 2):
