Saturn
>>
1997
>>
SL L4-1.9L SOHC VIN 8
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
HVAC System
>>
Design 1: Early 1997
Design 1: Early 1997

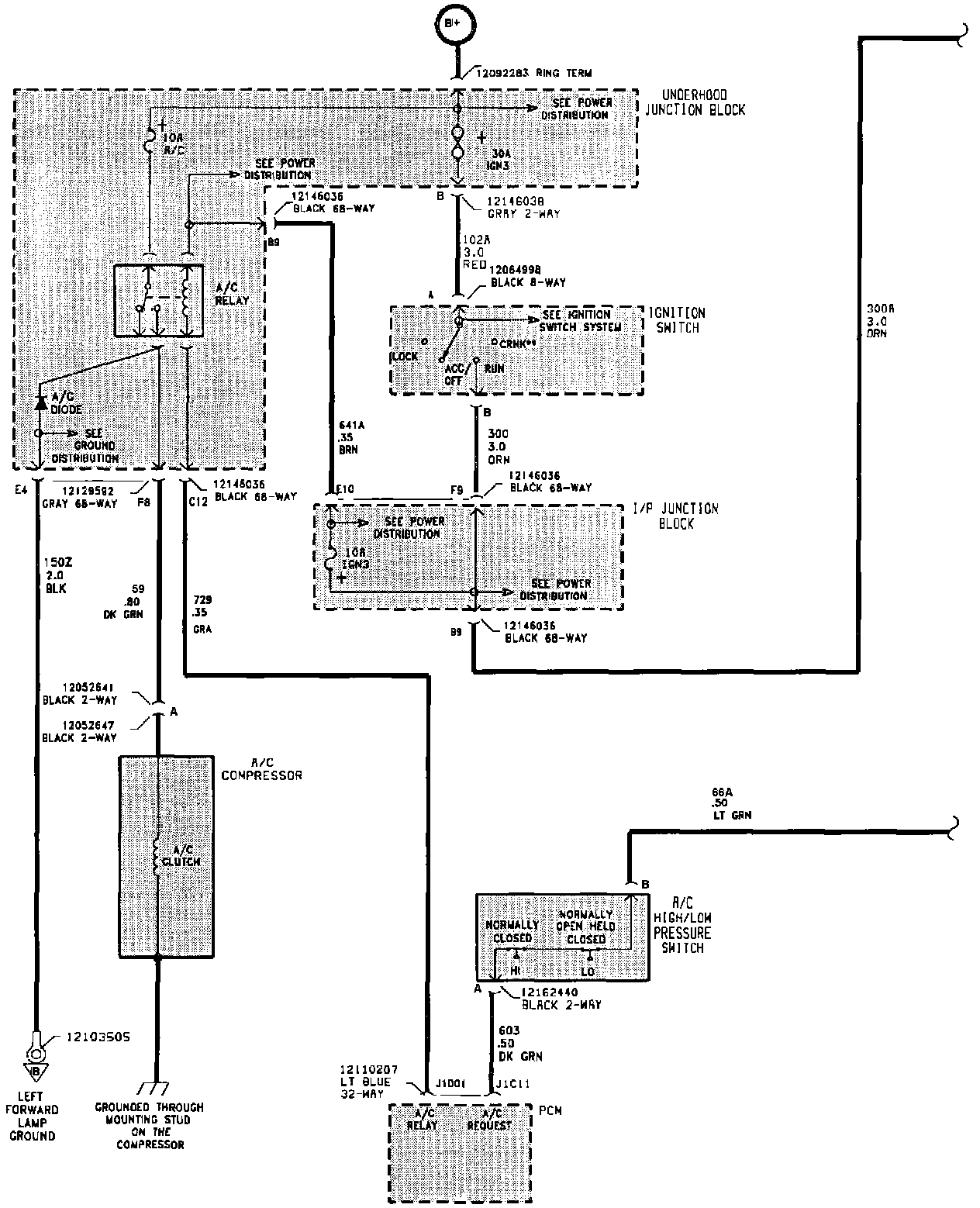

HVAC System (Design 1) (Part 1 Of 2):

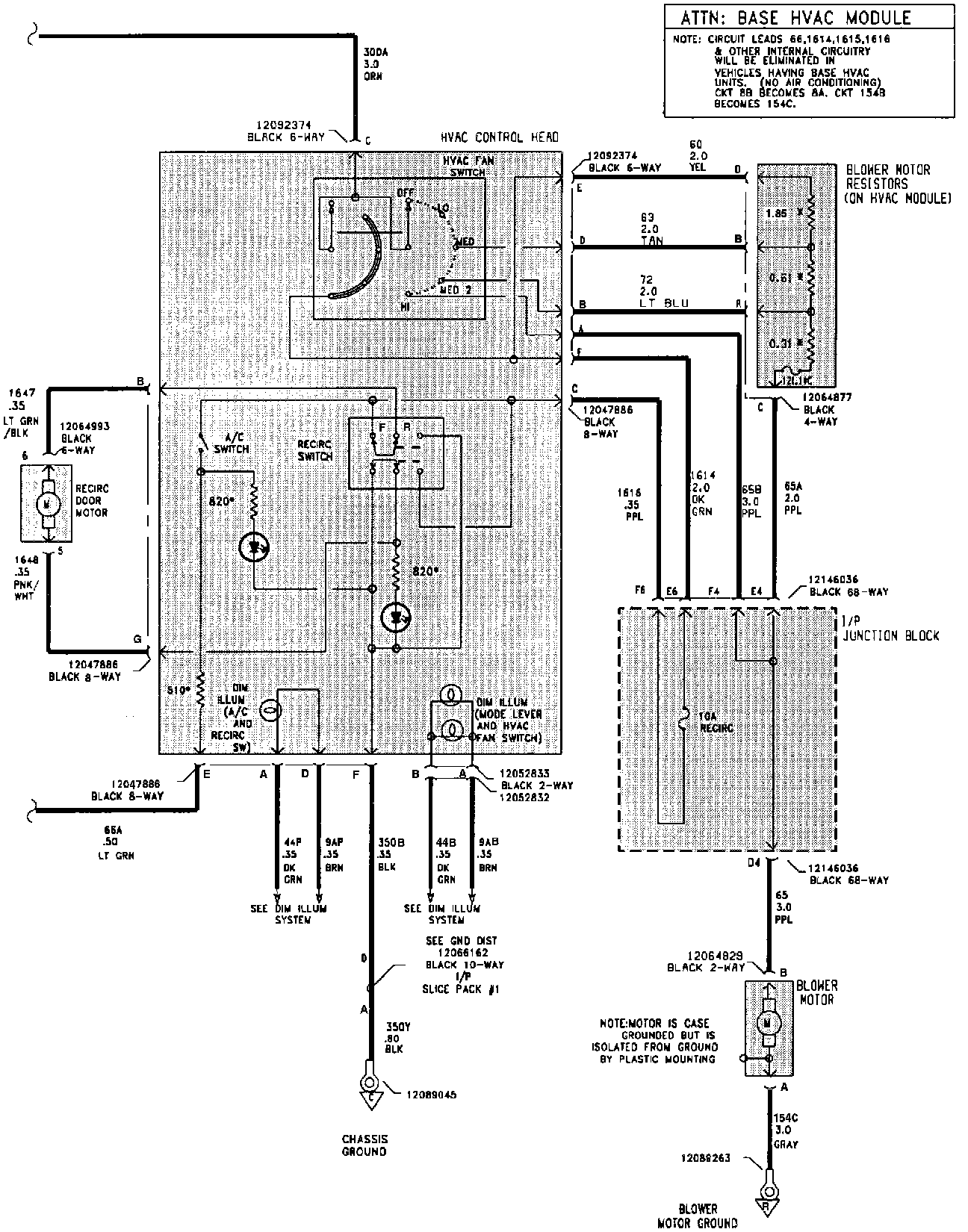

HVAC System (Design 1) (Part 2 Of 2):
