Home >> Saturn >> 1997 >> SL L4-1.9L SOHC VIN 8 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Air Bag Systems >> SIR Wiring Diagrams

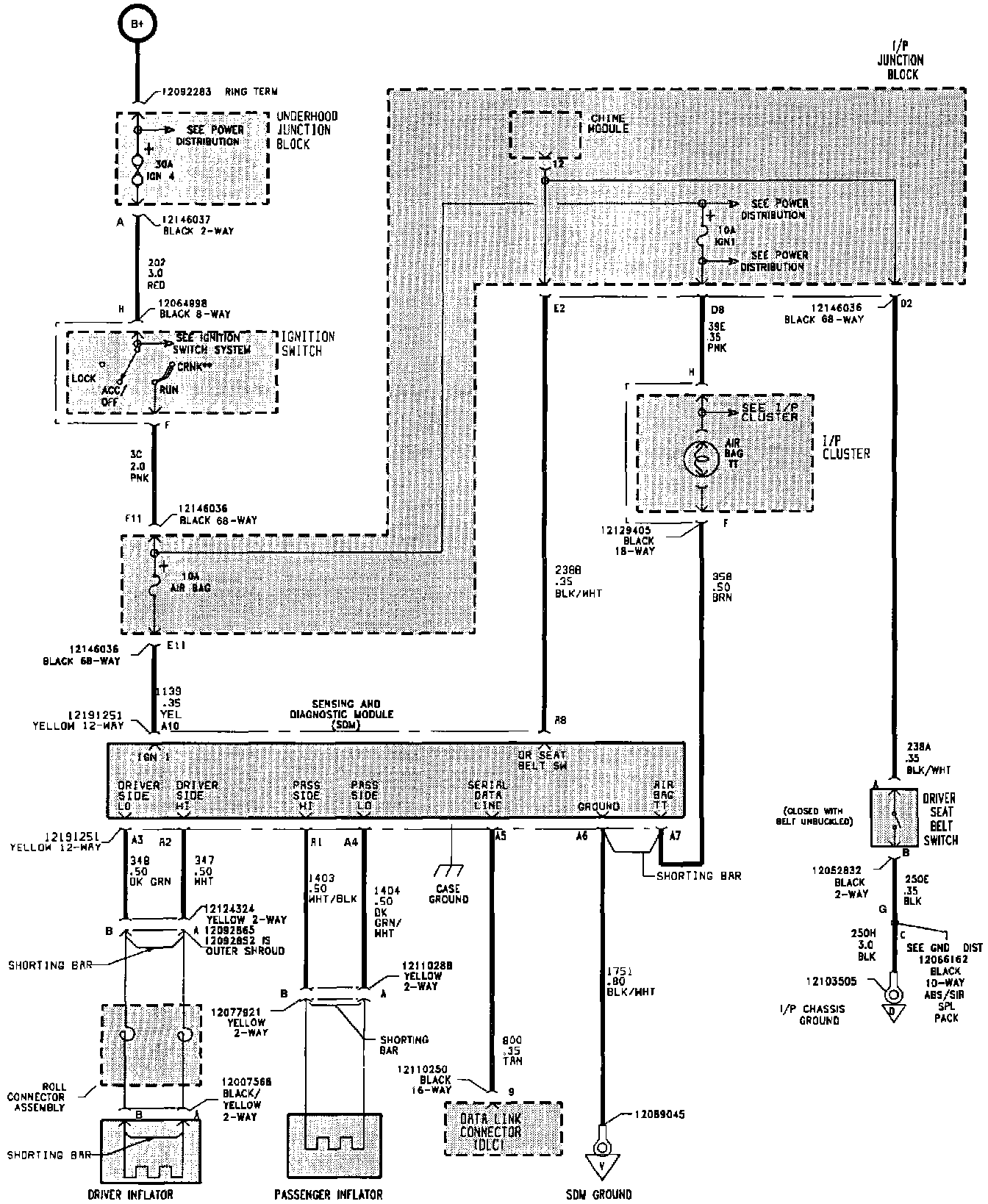

SIR Wiring Diagrams

Supplemental Inflatable Restraints (SIR):
