Home >> Saturn >> 1997 >> SL L4-1.9L SOHC VIN 8 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heating and Air Conditioning >> Control Assembly, HVAC >> Fan Switch

Fan Switch

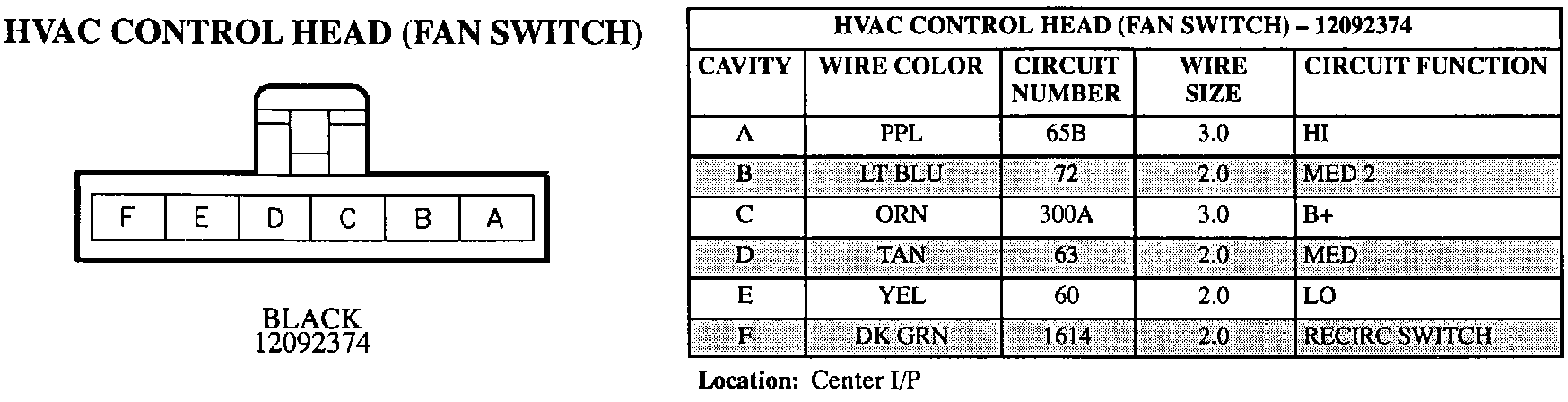

HVAC Control Head (Fan Switch):
