Home >> Saturn >> 1997 >> SL L4-1.9L SOHC VIN 8 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fog/Driving Lamp >> System Diagram

System Diagram

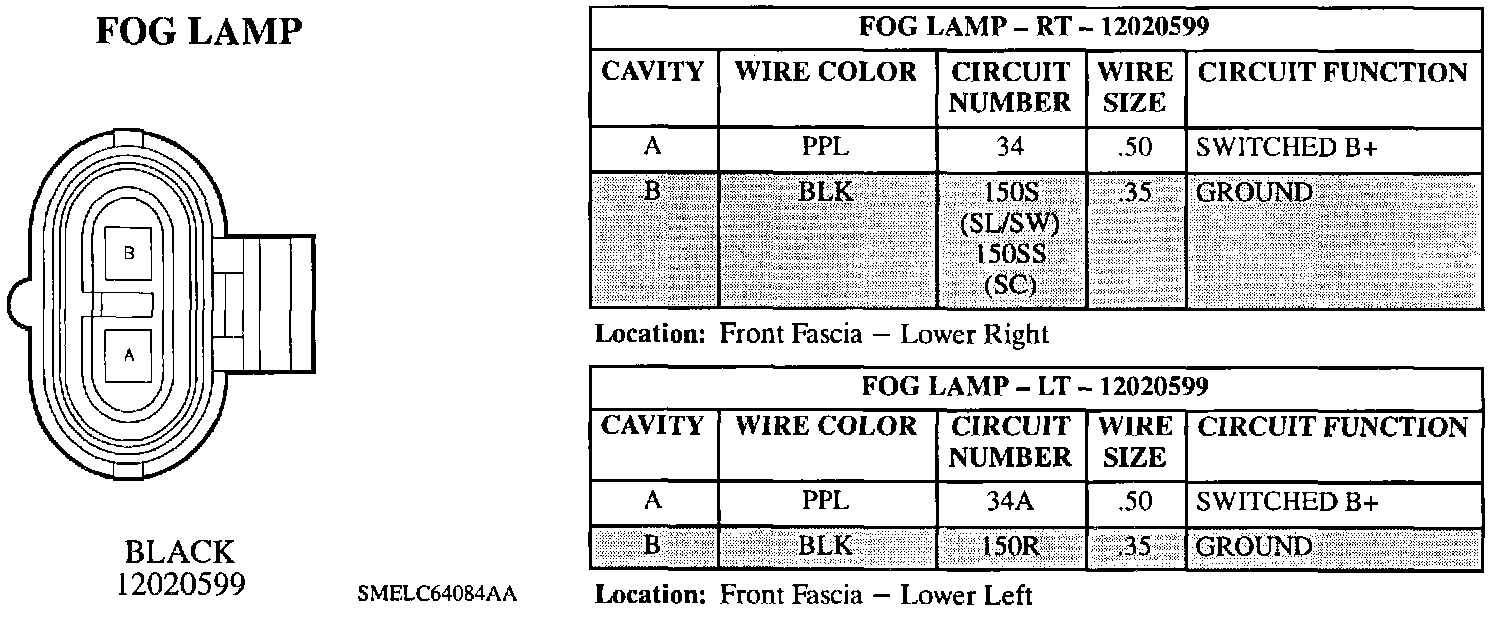

Fog Lamp:
