Home >> Saturn >> 1997 >> SL L4-1.9L SOHC VIN 8 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Component >> Decklid Inline to Body Harness

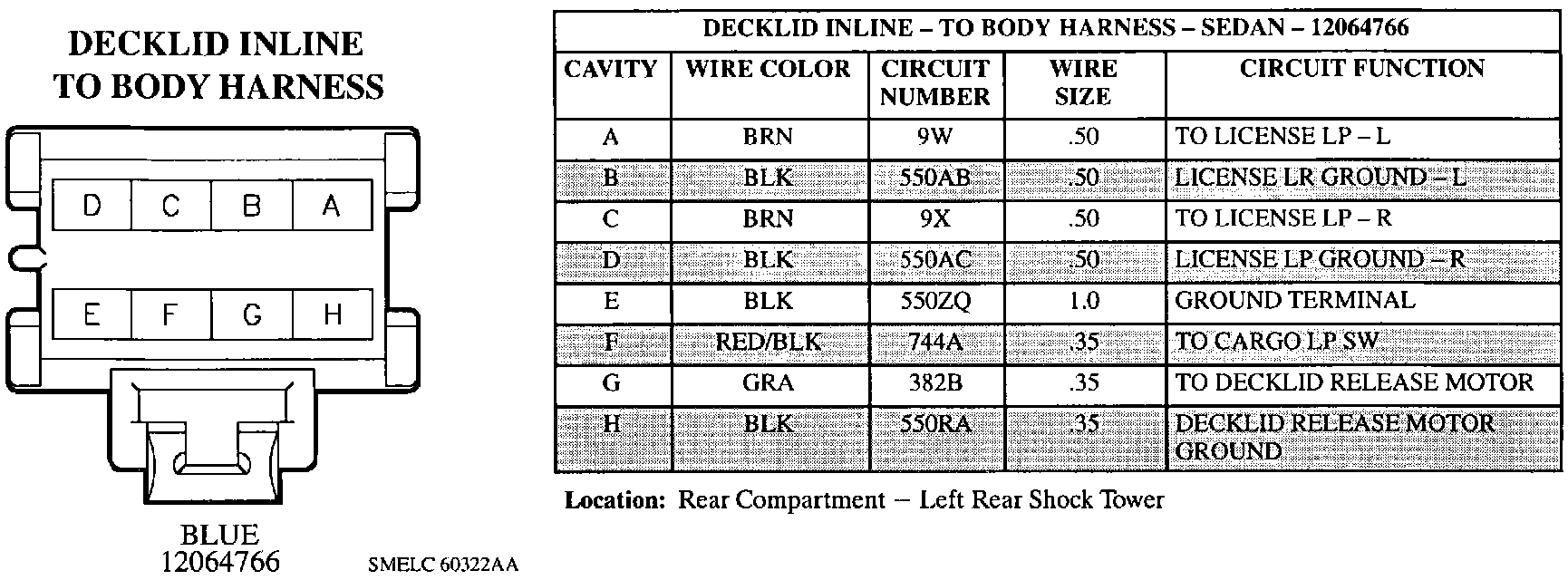

Decklid Inline to Body Harness

Decklid Inline To Body Harness:
