Vacuum Brake Booster Check Valve: Service and Repair

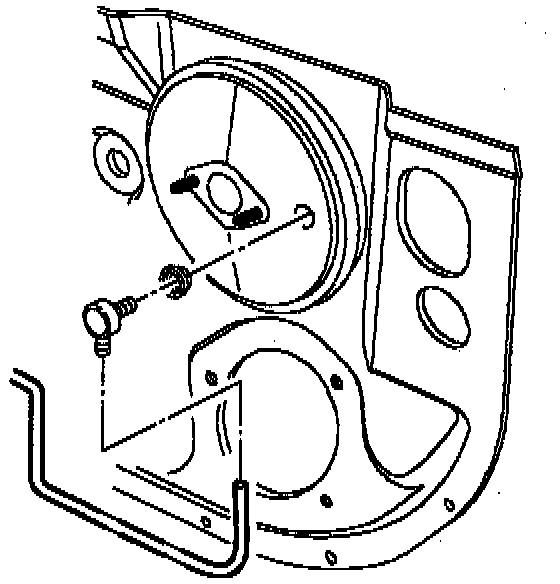

REMOVAL
1. Remove check valve and grommet from booster.
2. Remove check valve from vacuum hose.

INSTALLATION
1. Lubricate outside diameter of grommet with silicone grease and install in booster.
2. Lubricate both ends of valve and install into hose.
3. Install check valve with hose into booster.
