Sunroof / Moonroof Motor: Service and Repair
SUNROOF ACTUATOR (MOTOR)
REMOVAL
1. Remove headliner. Refer to "Headliner Removal" procedure.

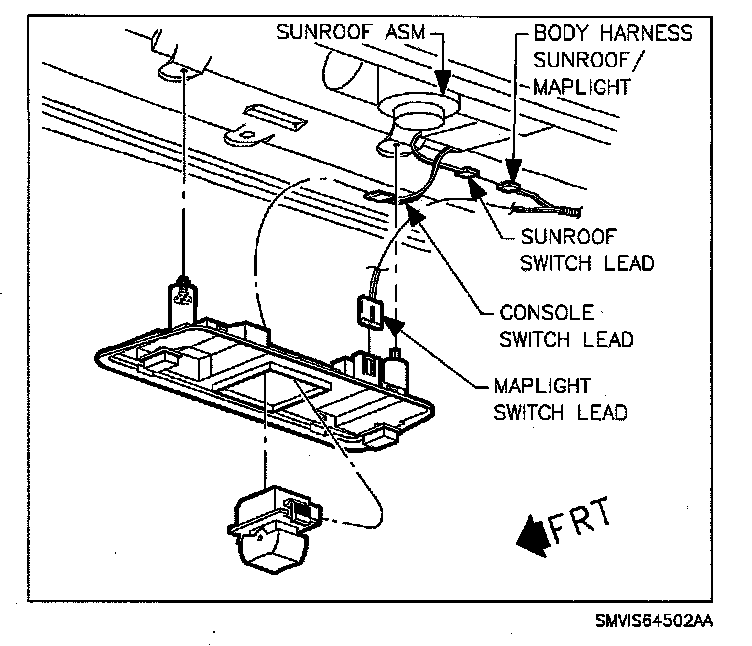

2. Remove two screws and lower sunroof switch/console assembly.
3. Disconnect harness from motor.

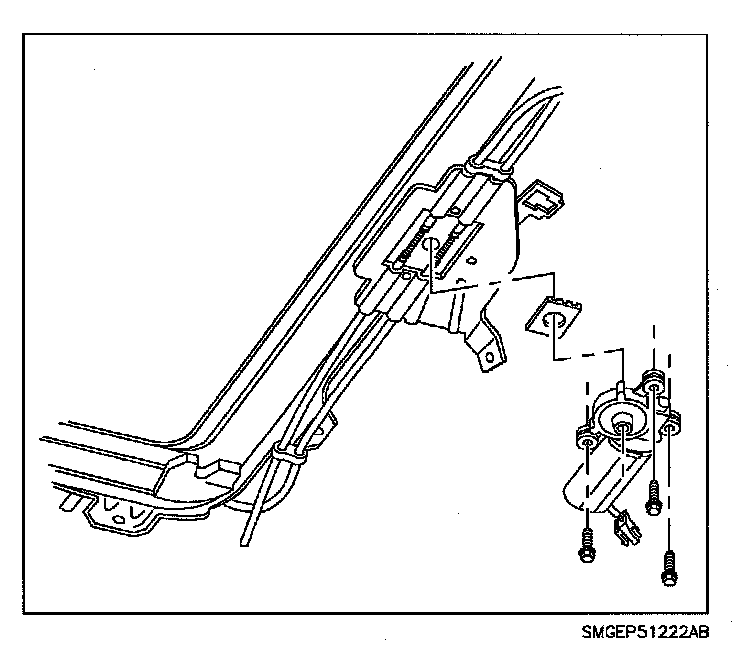

4. Remove three screws and remove sunroof motor.
INSTALLATION
IMPORTANT: If motor has been turned, or if sunroof glass position has changed, the motor must be retimed to the sunroof module. Refer to "Sunroof Motor to Module Timing" procedure.
1. Using three screws, install sunroof motor and connect to harness.
Torque: 3-4 Nm (27-35 in-lbs)
NOTICE: Do not pull the motor in with the attaching screws, as this may result in damage to the drive cables.
2. Install sunroof switch/console assembly with two screws.
3. Install headliner. Refer to "Headliner Installation" procedure.
SUNROOF ACTUATOR (MOTOR) TO MODULE TIMING
NOTICE: The sunroof motor has an internal microswitch which opens the motor circuit (turns motor off) when the glass reaches the full vent position. If the motor is operated separate from the sunroof module, or the position of the sunroof is changed without the motor installed, the timing of the sunroof motor to sunroof module will be out of phase. Putting the motor back into the module while out of phase will result in loss of the vent positioning feature. If the motor and module become out of phase, or the vent positioning feature is not functioning, use the following procedure to re-time the motor.
1. With sunroof in fully closed position, disengage motor from drive cable.
2. Run motor, using switch in its vent position, until the motor stops. This is the fully vented position.

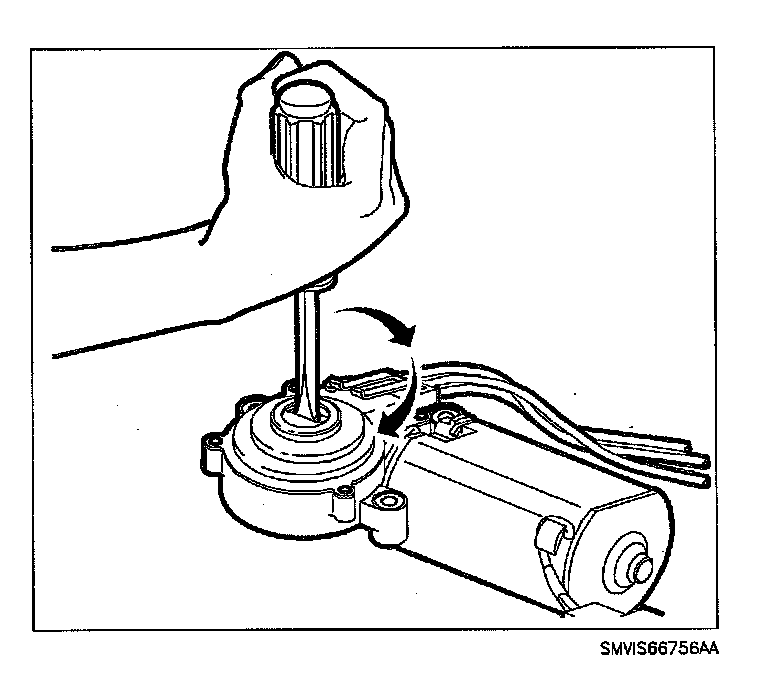

3. Using a large flat blade screwdriver, turn the motor gear drive slot 1 1/2 turns clockwise. This is the fully closed position.
4. Make sure that the sunroof glass is in the fully closed position, and install the motor. Refer to "Sunroof Actuator (Motor) Installation" procedure.
NOTICE: Do not pull the motor in with the attaching screws as this may result in damage to the drive cables.
