Sunroof Slide Block Replacement

SUNSHADE SLIDE BLOCK REPLACEMENT

REMOVAL

1. Remove sunshade assembly from sunroof. Refer to "Sunshade Removal" procedure.

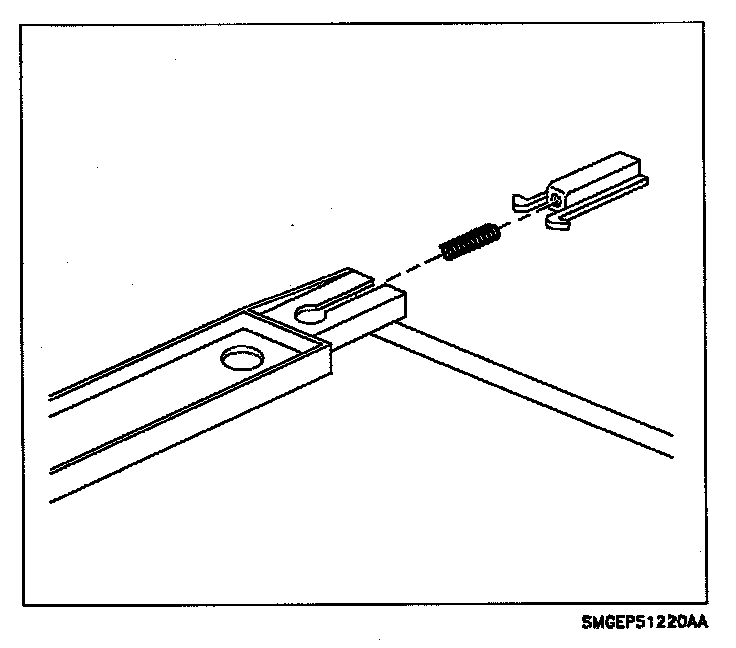

2. Squeeze together fingers on inboard end of slide block to allow slide block to slide out of it's channel and remove slide block and spring.

INSTALLATION

1. Insert slide block spring. Install slide block by squeezing together fingers on inboard end of slide block and inserting into sunshade.

2. Install sunshade assembly. Refer to "Sunshade Installation" procedure.
