Sunroof Locator Blocks

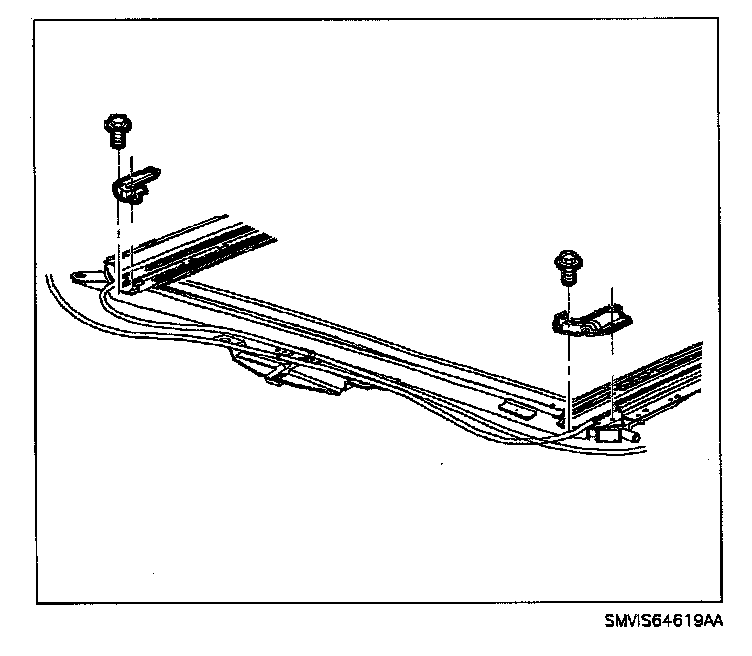

LOCATOR BLOCKS






REMOVAL

1. Open sunroof.

2. Remove locator block fastening screws.

3. Remove locator block using needle nose pliers.

INSTALLATION

1. Apply Loctite 242 (or equivalent) to screws. Make sure to cover the last few threads.

2. Install locator blocks.

3. Install locator block fastening screws.

Torque: 2 Nm (17.5 in-lbs)
