Home >> Saturn >> 1997 >> SL L4-1.9L SOHC VIN 8 >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Sunroof / Moonroof >> Diagrams >> Electrical Diagrams

Electrical Diagrams

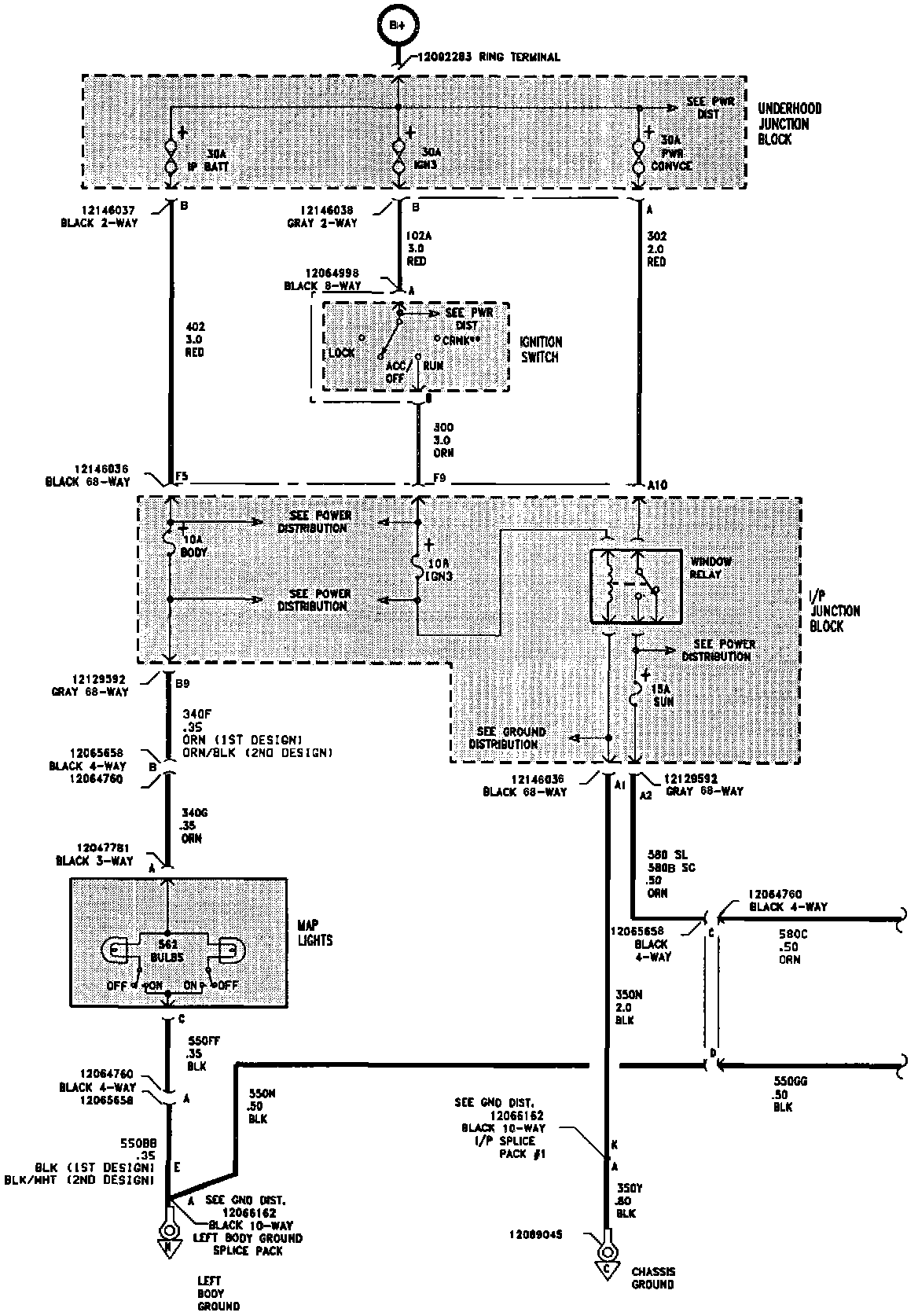

Power Sunroof/Map Light (Part 1 Of 2):

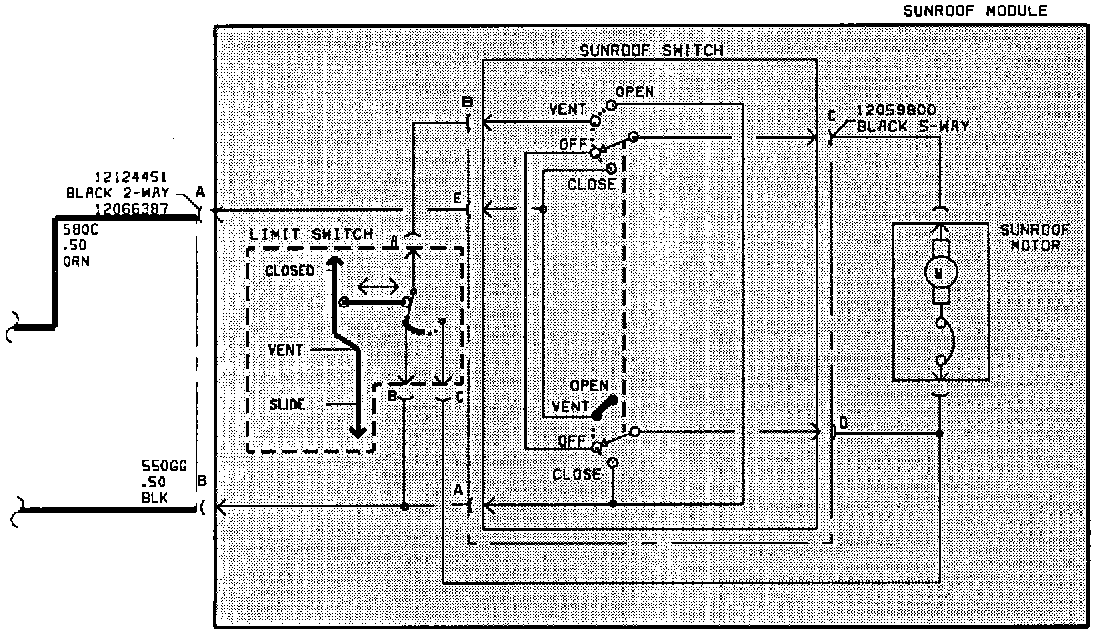

Power Sunroof/Map Light (Part 2 Of 2):
