Component Circuits Diagnosis

Mirror Switch:

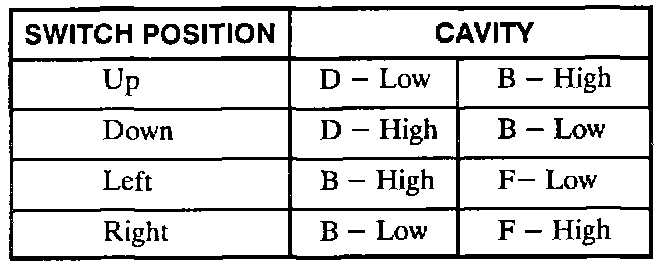

MIRROR SWITCH
Cavity A should always be High.
Cavity C should always be Low.

Repair as needed.

If this component is good go to the next item indicated on the chart.

MIRROR MOTORS
Check the connections at the motors.

Check for OPENS/SHORTS.

Repair/replace as needed.

If this component is good go to the next item indicated on the chart.
